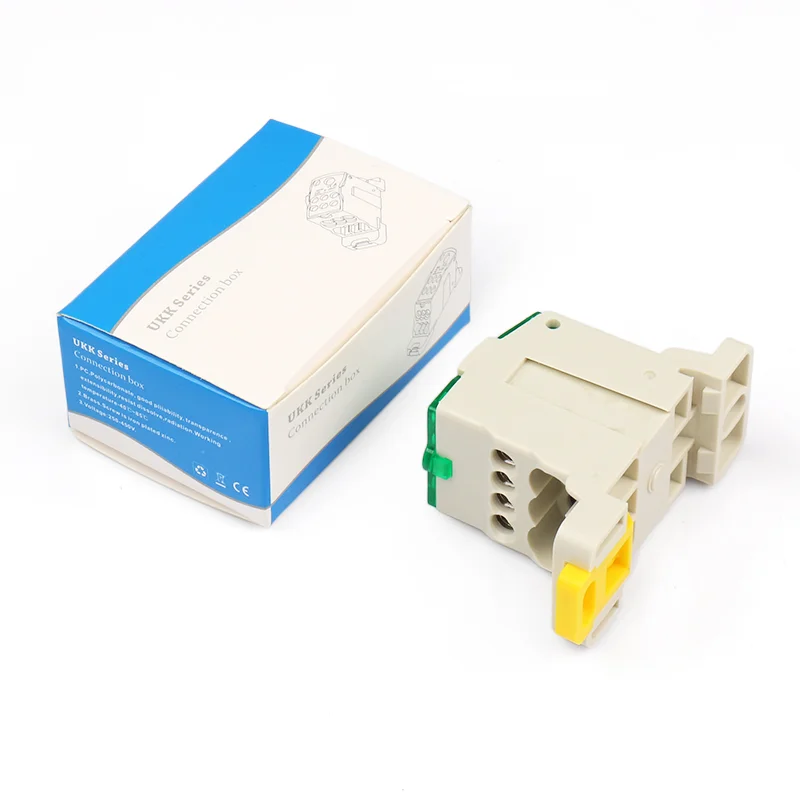

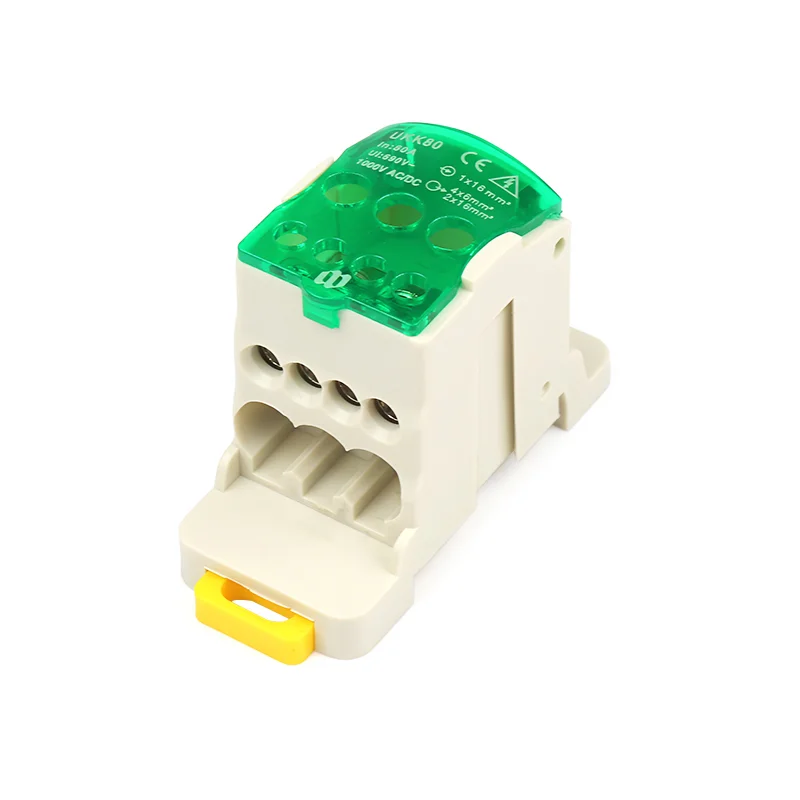

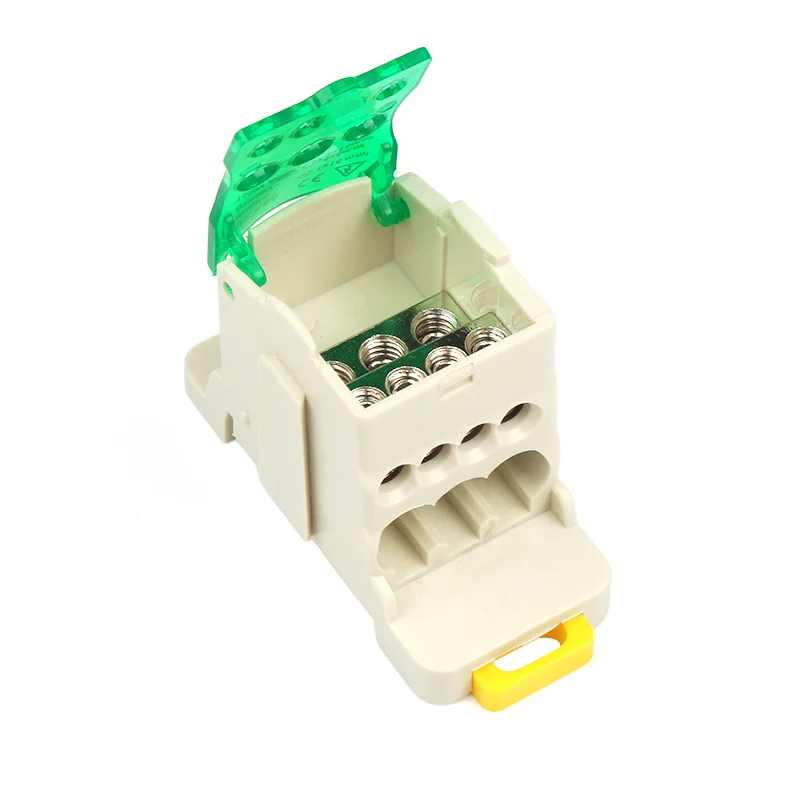

UKK 80A Single Phase Distribution Block
UKK 80A single phase distribution block with nickel-plated brass conductors, PA66 housing, 690V rating, CE/RoHS compliant, offering safe DIN rail or screw-mounted power distribution.
Single Pole Junction Box UKK80

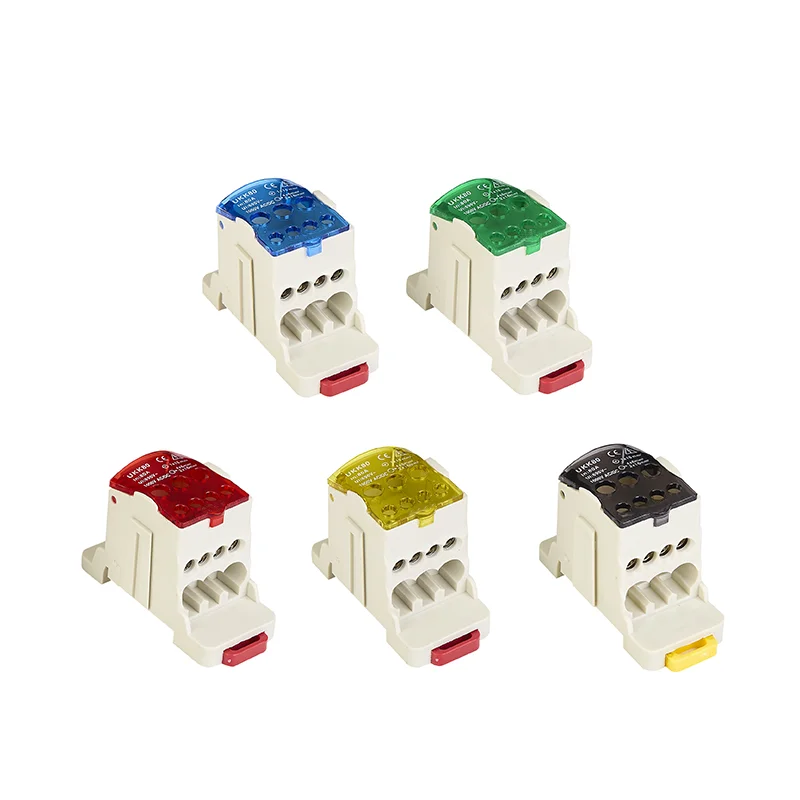

Regular color: blue. Other colors are available upon request.
| Certifications | CE ROHS | ||
| Dimensions and Materials | |||
| L × W × H(mm) | 69x31x46 | ||
| Screw Material | Nickel-plated steel | ||
| Conductor Material | Nickel-plated brass | ||
| Plastic Housing | PA66/94V-2 | ||
| Transparent Cover | PC | ||
| Mounting Method | 35mm guide rail and screw fixation | ||
| Electrical Performance | |||
| Reference Standard | IEC 60947-7-1 | ||
| Rated Voltage(V) | 690 | ||
| Rated Current(A) | 80 | ||
| Impulse Withstand Current/IPk (KA) | 22 | ||
| Wiring Parameters | |||
| Input | A | B | C |
| Number of interfaces | 6 to 16 X1 | ||
| Tightening Torque(N.m) | 3.5 | ||
| Interface Diameter(mm) | 6.5 | ||
| Metric Wire Diameter(mm2) | 6~16 | ||
| American Made Wire Diameter (AWG) | 16~4 | ||
| Output | A | B | C |
| Number of interfaces | 2.5 to 6 x4 | 2.5 to 16 X2 | |
| Tightening Torque(N.m) | 3.5 | 3.5 | |
| Interface Diameter(mm) | 5 | 6.5 | |
| Metric Wire Wire Diameter (mm2) | 2.5~6 | 6~16 | |
| American Made Wire Diameter(AWG) | 16~8 | 16~4 | |
