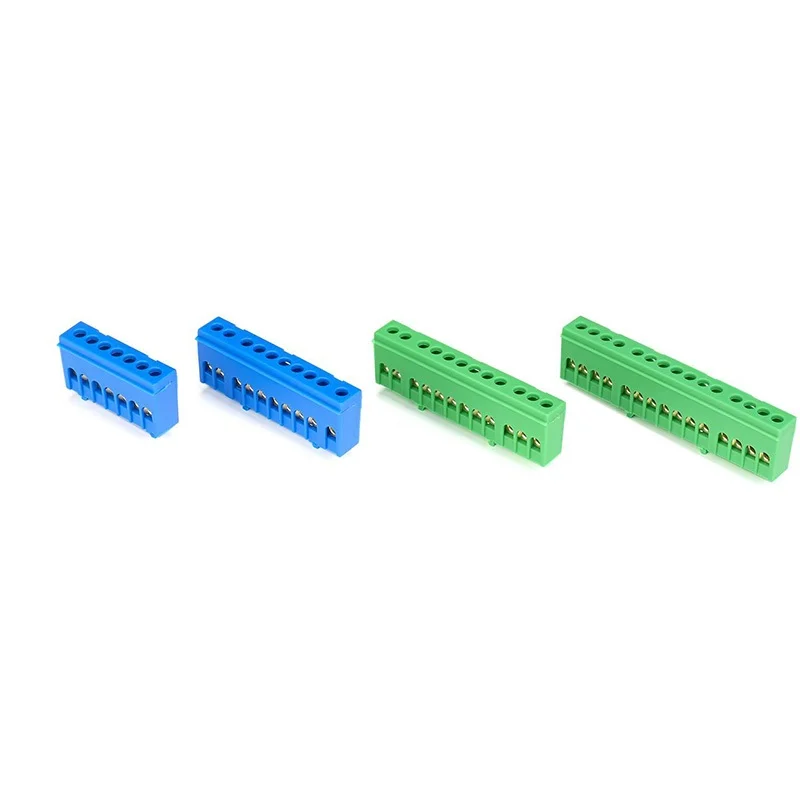

A09 Netural Bar with Blue Full Plastic Cover
A09 Series terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -30°C to 110°C, flame retardant, high strength, excellent electrical performance, supports 35mm DIN rail and screw mounting, available in blue, green, or custom colors.
A09 Series
- Conductor: Brass
- Screw: Galvanized iron
- PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
- Operating temperature: -30°C to 110°C
- Applicable voltage range: 250–450V
- Installation method: 35mm DIN rail and screw fixation
- Plastic color: Standard colors are blue and green; other colors available on request
| Model | Ways | Spec (mm) | L1 (mm) | W (mm) | H (mm) | L2 Installation Dimension (mm) | M Screws | Ф Diameter(mm) |
| A09/7-0609 | 7 | 6*9 | 51 | 14 | 32 | 35 | 4*7 | 5.3 |
| A09/10-0609 | 10 | 6*9 | 76 | 14 | 32 | 35 | 4*7 | 5.3 |
| A09/12-0609 | 12 | 6*9 | 90 | 14 | 32 | 35 | 4*7 | 5.3 |
| A09/15-0609 | 15 | 6*9 | 110 | 14 | 32 | 35 | 4*7 | 5.3 |
