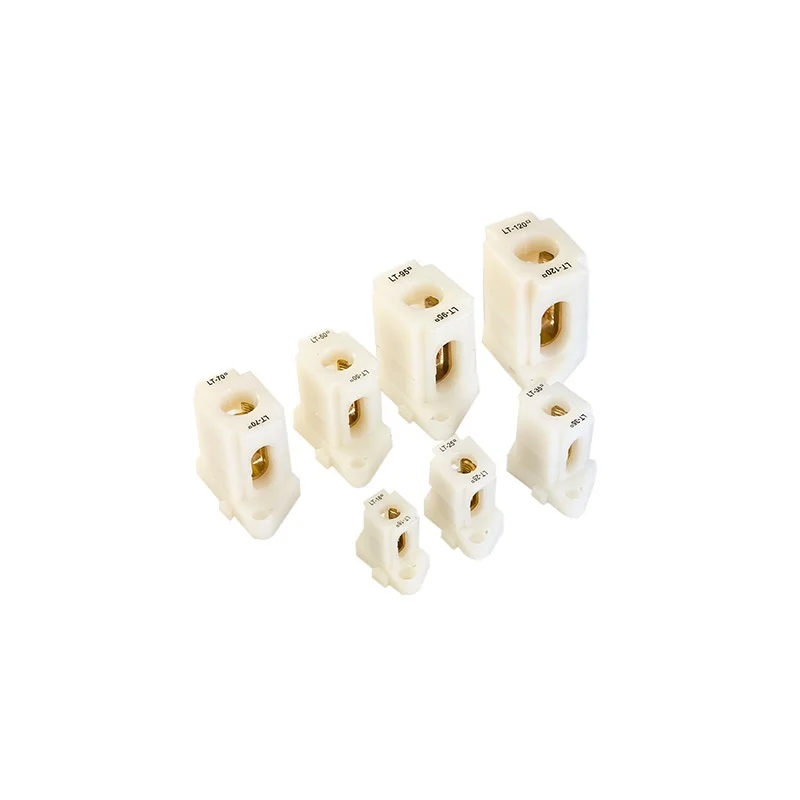

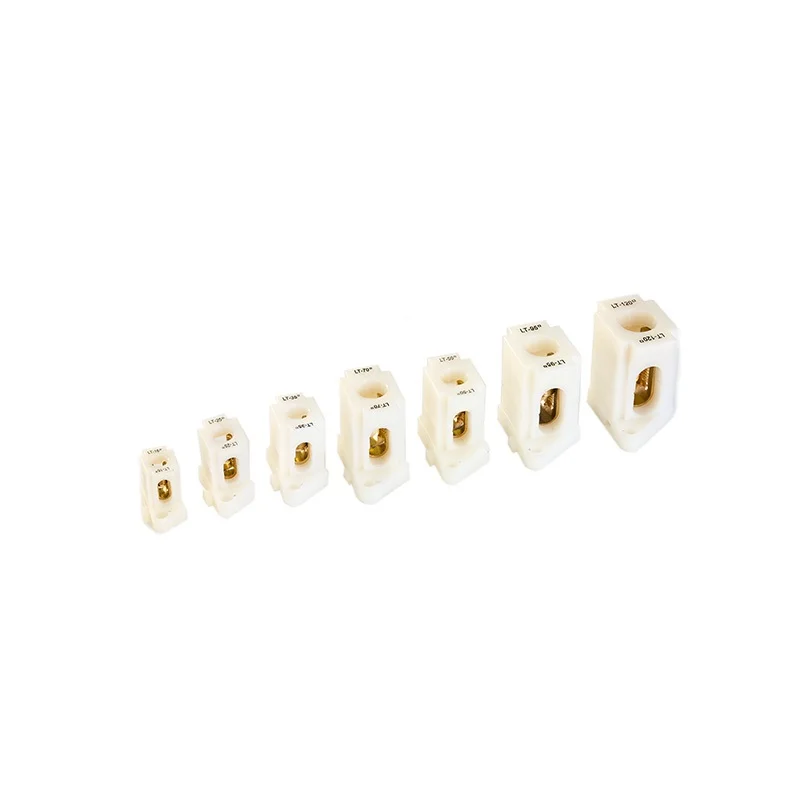

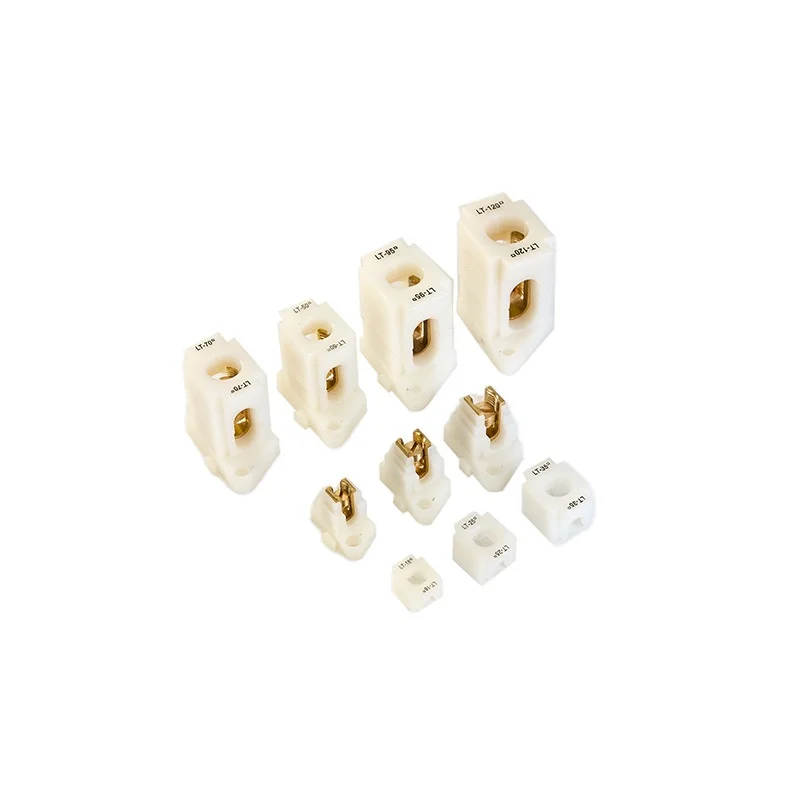

A30 LT series Terminal With White Cover
A30 Series terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -30°C to 110°C, flame retardant, high strength, excellent electrical performance, screw-mounted, standard gray or custom colors.
A30 Series
- Conductor: Brass
- Screw: Galvanized iron
- PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
- Operating temperature: -30°C to 110°C
- Applicable voltage range: 250–450V
- Installation method: Screw fixation
- Plastic color: Standard color is gray; other colors available on request
| Model | Ways | L1 (mm) | W (mm) | H (mm) | L2 Installation Dimension (mm) | Max. section | |
| A30/16 | 1 | 16 | 16㎡ | ||||
| A30/25 | 1 | 25 | 25㎡ | ||||
| A30/35 | 1 | 35 | 35㎡ | ||||
| A30/50 | 1 | 50 | 50㎡ | ||||
| A30/70 | 1 | 70 | 70㎡ | ||||
| A30/95 | 1 | 95 | 95㎡ | ||||
| A30/120 | 1 | 120 | 120㎡ |
