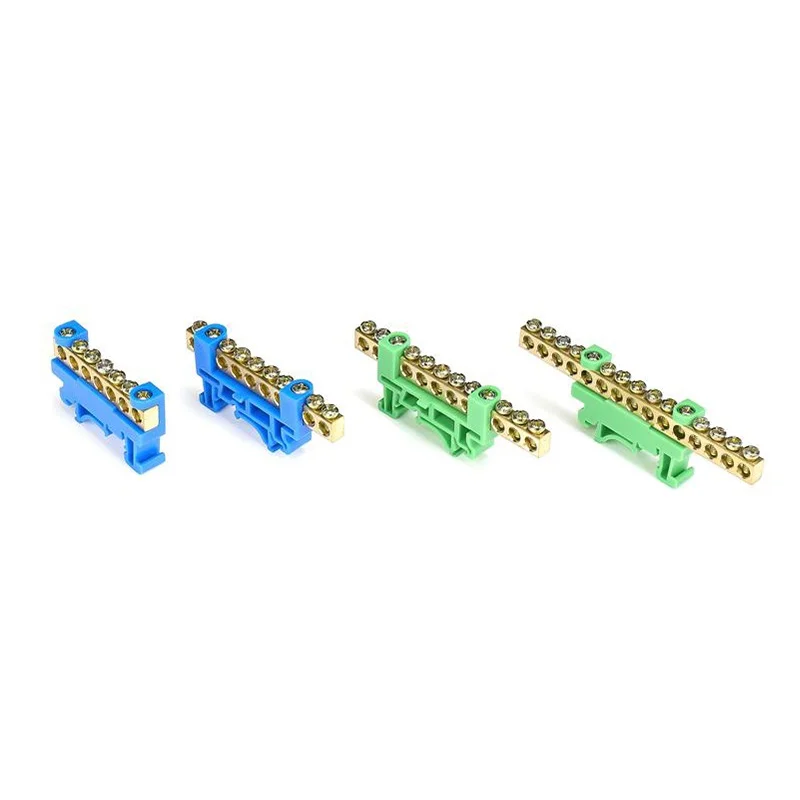

A06 Brass Electrical Netural Bar 100A Max Mounted With Din Rail
A06 Series DIN rail terminal block with brass conductor, galvanized screws, and PP housing. Rated 250–450V, -40°C to 65°C, chemically resistant, elastic, fatigue-resistant, easy 35mm DIN rail installation, available in blue, green, or custom colors.
A06 Series
- Conductor: Brass
- Screw: Galvanized iron
- PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
- Operating temperature: -40°C to 65°C
- Applicable voltage range: 250–450V
- Installation method: 35mm DIN rail
- Plastic color: Standard colors are blue and green; other colors available on request
| Model | Ways | Spec (mm) | L1 (mm) | W (mm) | H (mm) | L2 Installation Dimension (mm) | M Screws | Ф Diameter(mm) |
| A06/7-0609 | 7 | 6*9 | 51 | 13 | 31 | 35 | 4*7 | 5.3 |
| A06/8-0609 | 8 | 6*9 | 57.5 | 13 | 31 | 35 | 4*7 | 5.3 |
| A06/10-0609 | 10 | 6*9 | 71 | 13 | 31 | 35 | 4*7 | 5.3 |
| A06/12-0609 | 12 | 6*9 | 85 | 13 | 31 | 35 | 4*7 | 5.3 |
| A06/15-0609 | 15 | 6*9 | 106 | 13 | 31 | 35 | 4*7 | 5.3 |
| A06/15-0609 | 18 | 6*9 | 126 | 13 | 31 | 35 | 4*7 | 5.3 |
