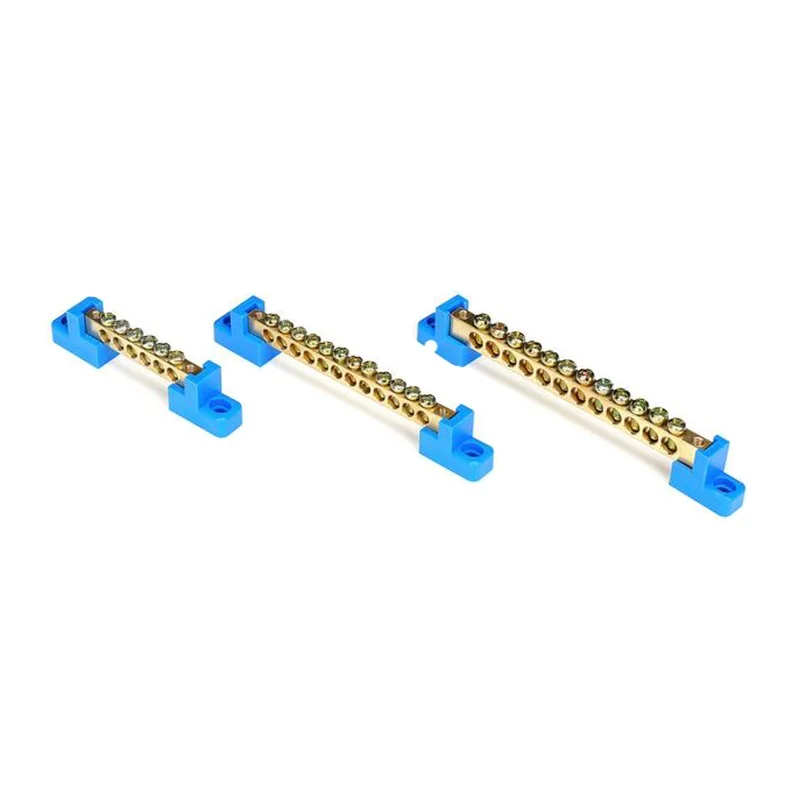

A04 Neutral Bar with Blue Fixing Part
A04 Series terminal block with brass conductor, galvanized screws, and ABS housing. Rated 250–450V, -20°C to 70°C, flame retardant, impact-resistant, screw-mounted, available in blue, green, or custom colors.
A04 Series
- Conductor: Brass
- Screw: Galvanized iron
- ABS with heat resistance, low-temperature resistance, flame retardant, high strength, and impact resistance
- Operating temperature: -20°C to 70°C
- Applicable voltage range: 250–450V
- Installation method: Screw fixation
- Plastic color: Standard colors are blue and green; other colors available on request
| Model | Ways | Spec (mm) | L1 (mm) | W (mm) | H (mm) | L2 Installation Dimension (mm) | M Screws | Ф Diameter(mm) |
| A04/6-0609 | 6 | 6*9 | 85 | 12.5 | 22 | 72 | 4*7 | 5.3 |
| A04/8-0609 | 8 | 6*9 | 98 | 12.5 | 22 | 85 | 4*7 | 5.3 |
| A04/10-0609 | 10 | 6*9 | 111 | 12.5 | 22 | 98 | 4*7 | 5.3 |
| A04/12-0609 | 12 | 6*9 | 124 | 12.5 | 22 | 112 | 4*7 | 5.3 |
| A04/14-0609 | 14 | 6*9 | 137 | 12.5 | 22 | 124 | 4*7 | 5.3 |
| A04/16-0609 | 16 | 6*9 | 150 | 12.5 | 22 | 137 | 4*7 | 5.3 |
| A04/20-0609 | 20 | 6*9 | 176 | 12.5 | 22 | 164 | 4*7 | 5.3 |
| A04/6-0711 | 6 | 7*11 | 98 | 12.5 | 24 | 85 | 5*9 | 6.5 |
| A04/8-0711 | 8 | 7*11 | 114 | 12.5 | 24 | 102 | 5*9 | 6.5 |
| A04/10-0711 | 10 | 7*11 | 130 | 12.5 | 24 | 117 | 5*9 | 6.5 |
| A04/12-0711 | 12 | 7*11 | 145.5 | 12.5 | 24 | 133 | 5*9 | 6.5 |
| A04/14-0711 | 14 | 7*11 | 157.5 | 12.5 | 24 | 145 | 5*9 | 6.5 |
| A04/16-0711 | 16 | 7*11 | 173 | 12.5 | 24 | 161 | 5*9 | 6.5 |
| A04/20-0711 | 20 | 7*11 | 203 | 12.5 | 24 | 191 | 5*9 | 6.5 |
| A04/6-0812 | 6 | 8*12 | 98 | 12.5 | 25 | 85 | 5*10 | 6.5 |
| A04/8-0812 | 8 | 8*12 | 114 | 12.5 | 25 | 102 | 5*10 | 6.5 |
| A04/10-0812 | 10 | 8*12 | 130 | 12.5 | 25 | 117 | 5*10 | 6.5 |
| A04/12-0812 | 12 | 8*12 | 145.5 | 12.5 | 25 | 133 | 5*10 | 6.5 |
| A04/14-0812 | 14 | 8*12 | 157.5 | 12.5 | 25 | 145 | 5*10 | 6.5 |
| A04/16-0812 | 16 | 8*12 | 173 | 12.5 | 25 | 161 | 5*10 | 6.5 |
| A04/20-0812 | 20 | 8*12 | 203 | 12.5 | 25 | 191 | 5*10 | 6.5 |
