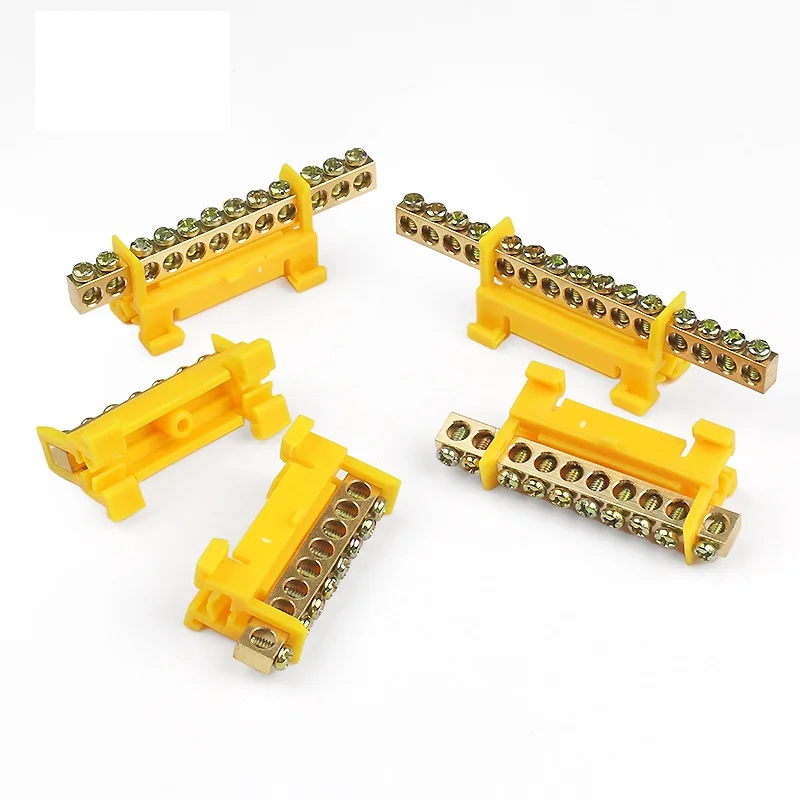

A03 Neutral Bar Link Mounted With Din Rail
A03 Series DIN rail terminal block with brass conductor, galvanized iron screw and PP insulation. Rated 250–450V, operating -40°C to 65°C, chemically resistant, reliable electrical insulation, easy 35mm DIN rail installation, blue/green or custom colors.
A03 Series
- Conductor: Brass
- Screw: Galvanized iron
- PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
- Operating temperature: -40°C to 65°C
- Applicable voltage range: 250–450V
- Installation method: 35mm DIN rail

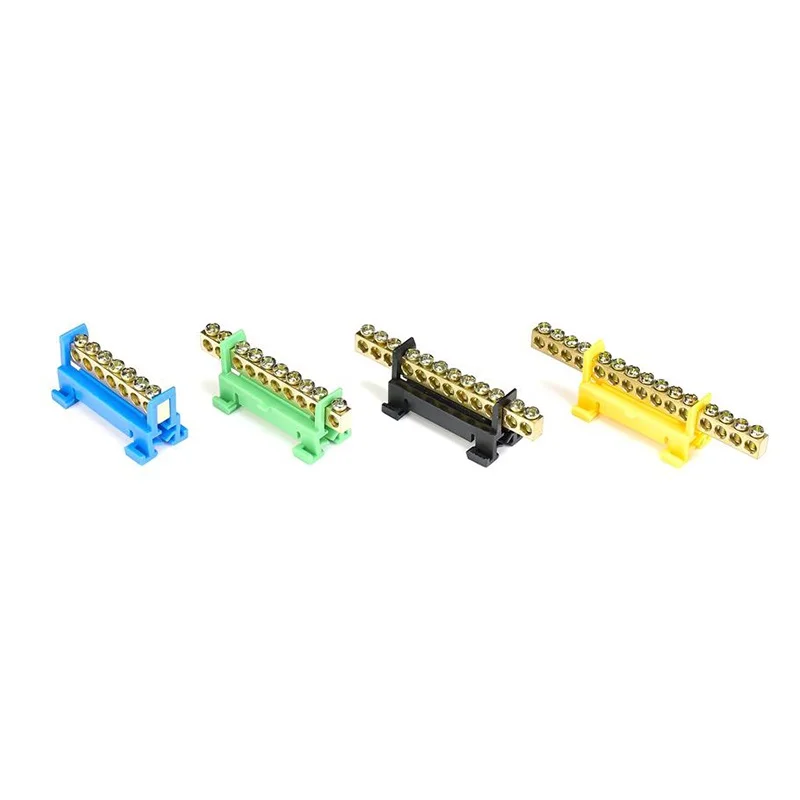

- Plastic color: Standard colors are blue and green; other colors available on request
| Model | Ways | Spec (mm) | L1 (mm) | W (mm) | H (mm) | L2 Installation Dimension (mm) | M Screws | Ф Diameter(mm) |
| A03/7-0609 | 7 | 6*9 | 51 | 23 | 27 | 35 | 4*7 | 5.3 |
| A03/8-0609 | 8 | 6*9 | 59 | 23 | 27 | 35 | 4*7 | 5.3 |
| A03/10-0609 | 10 | 6*9 | 73 | 23 | 27 | 35 | 4*7 | 5.3 |
| A03/12-0609 | 12 | 6*9 | 86 | 23 | 27 | 35 | 4*7 | 5.3 |
| A03/15-0609 | 15 | 6*9 | 106 | 23 | 27 | 35 | 4*7 | 5.3 |
| A03/18-0609 | 18 | 6*9 | 126 | 23 | 27 | 35 | 4*7 | 5.3 |
