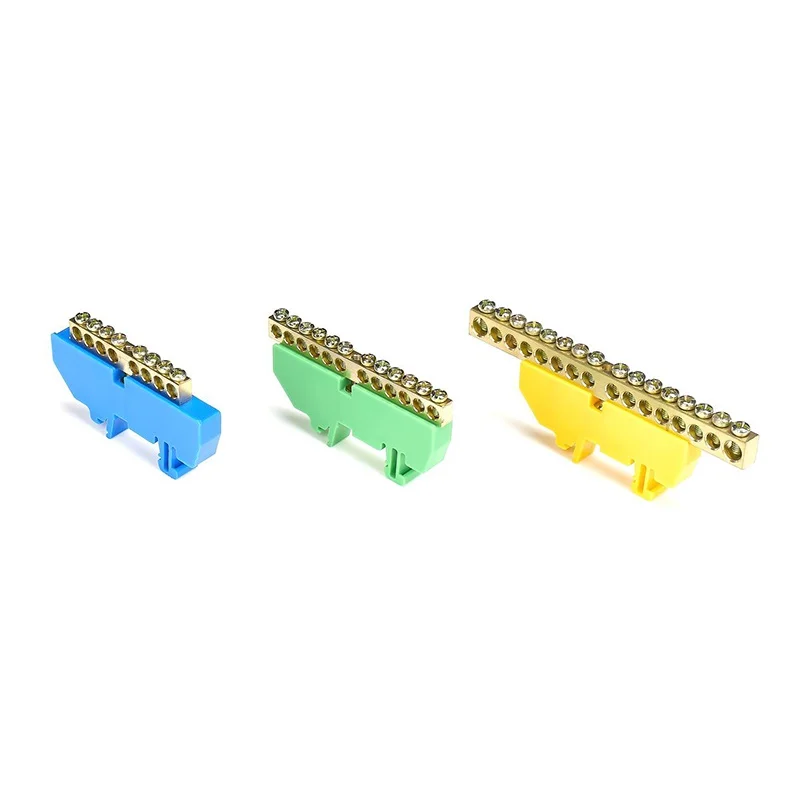

A02 Brass Din Rail Electrical Neutral Bar Link
A02 Series DIN rail terminal block with brass conductor, galvanized screw and PP insulation. Rated 250–450V, -40°C to 65°C, durable, chemically resistant, easy 35mm installation, blue/green or custom colors.
A02 Series
- Conductor: Brass
- Screw: Galvanized iron
- PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
- Operating temperature: -40°C to 65°C
- Applicable voltage range: 250–450V
- Installation method: 35mm DIN rail
- Plastic color: Standard colors are blue and green, other colors available on request
| Model | Ways | Spec (mm) | L1 (mm) | W (mm) | H (mm) | L2 Installation Dimension (mm) | M Screws | Ф Diameter(mm) |
| A02/4-0609 | 4 | 6*9 | 78 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/6-0609 | 6 | 6*9 | 78 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/8-0609 | 8 | 6*9 | 78 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/10-0609 | 10 | 6*9 | 78 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/12-0609 | 12 | 6*9 | 84 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/14-0609 | 14 | 6*9 | 98 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/16-0609 | 16 | 6*9 | 112 | 10 | 44 | 35 | 4*7 | 5.3 |
| A02/6-0711 | 6 | 7*11 | 78 | 10 | 46 | 35 | 5*9 | 6.5（8*2） |
| A02/8-0711 | 8 | 7*11 | 78 | 10 | 46 | 35 | 5*9 | 6.5（8*2） |
| A02/10-0711 | 10 | 7*11 | 83 | 10 | 46 | 35 | 5*9 | 6.5（8*2） |
| A02/12-0711 | 12 | 7*11 | 98 | 10 | 46 | 35 | 5*9 | 6.5（8*2） |
| A02/14-0711 | 14 | 7*11 | 113 | 10 | 46 | 35 | 5*9 | 6.5（8*2） |
| A02/16-0711 | 16 | 7*11 | 128 | 10 | 46 | 35 | 5*9 | 6.5（8*2） |
| A02/6-0812 | 6 | 8*12 | 78 | 10 | 47 | 35 | 5*9 | 6.5（8*2） |
| A02/8-0812 | 8 | 8*12 | 78 | 10 | 47 | 35 | 5*9 | 6.5（8*2） |
| A02/10-0812 | 10 | 8*12 | 83 | 10 | 47 | 35 | 5*9 | 6.5（8*2） |
| A02/12-0812 | 12 | 8*12 | 98 | 10 | 47 | 35 | 5*9 | 6.5（8*2） |
| A02/14-0812 | 14 | 8*12 | 113 | 10 | 47 | 35 | 5*9 | 6.5（8*2） |
| A02/16-0812 | 16 | 8*12 | 128 | 10 | 47 | 35 | 5*9 | 6.5（8*2） |
