DC Surge Protector
China Quality DC Surge Protector Manufacturers and Suppliers. DC surge protector is suitable for the new energy solar power generation system,working voltage of 500V,600V,800V,1000V.Installation position in the total power supply DC circuit systems,direct,indirect lightning current of lightning current or other transient over voltage protection. Yuelong Electric(GHX) is a large-scale DC Surge Protector manufacturer and supplier in China. We have been specialized inDC Surge Protector for many years. Our products have a good price advantage and cover most of the Southeast Asia,India,Poland markets. We are looking forward to becoming your long-term partner.
Product Description
China Quality DC Surge Protector Manufacturers and Suppliers
Features of DC Surge Protector

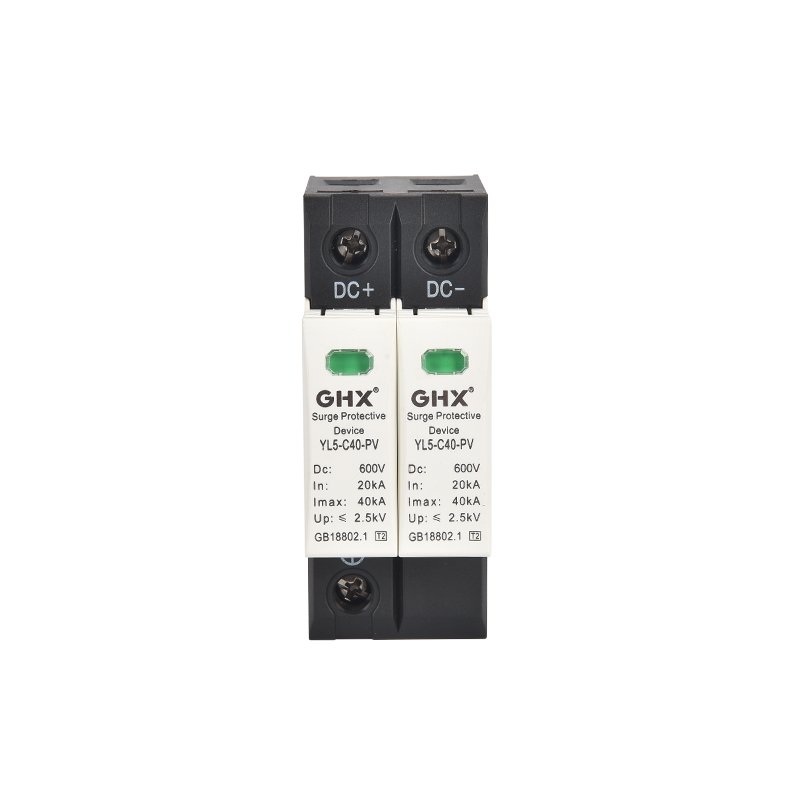

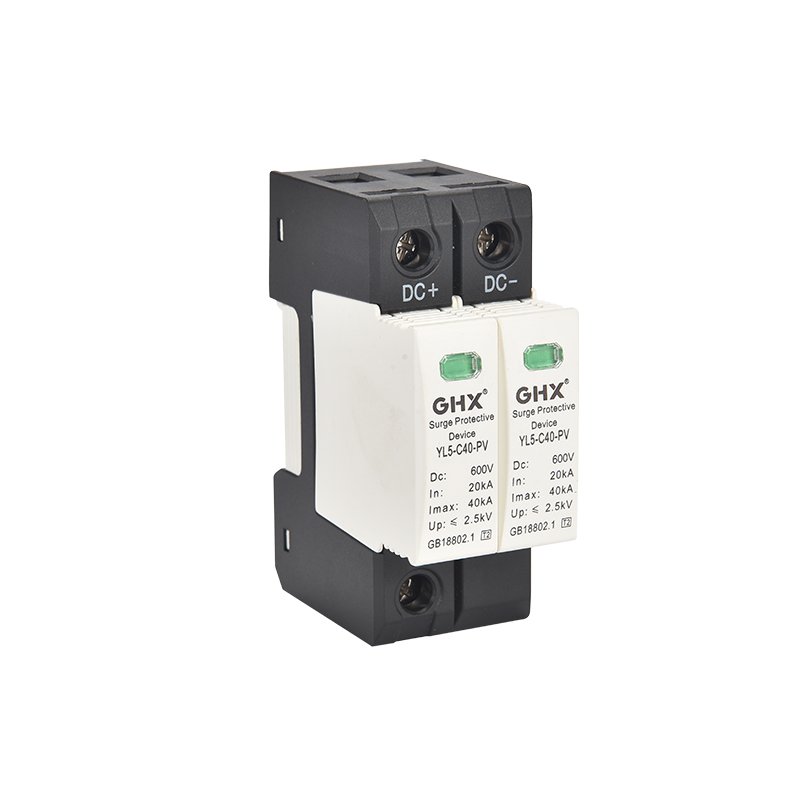

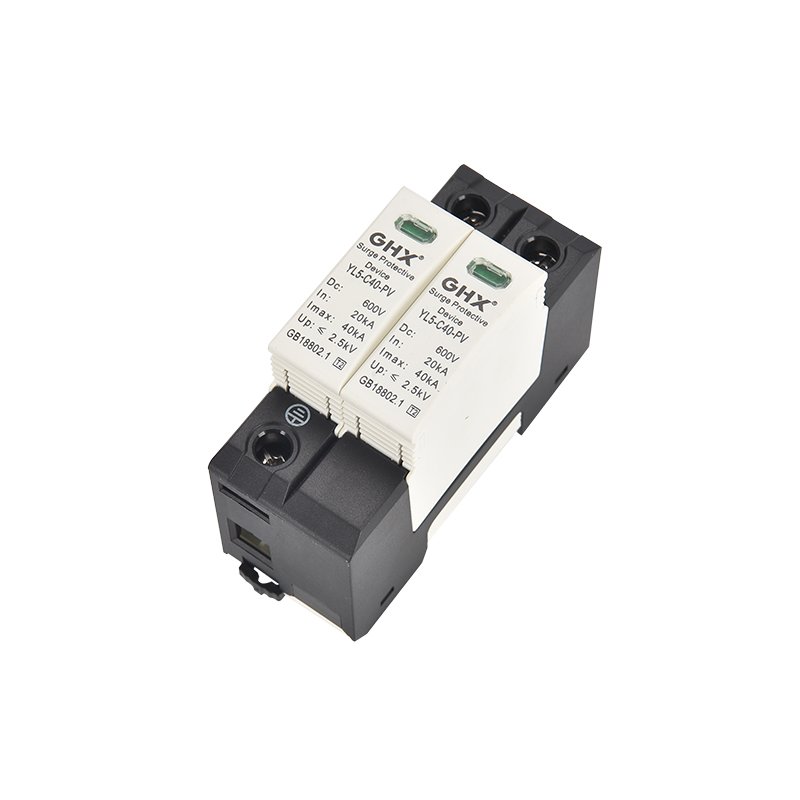

DC Surge Protector
Status indicator
Low residual, short response time
Thermal disconnect device
Themperature control to protect circuit
DIN rail mounting for easy installation
Plug connectors for quick and easy connection for rewiring
Status indicator
Low residual, short response time
Thermal disconnect device
Themperature control to protect circuit
DIN rail mounting for easy installation
Plug connectors for quick and easy connection for rewiring
Application of DC Surge Protector
DC power sytem
DC distribution board
DC power supply equipment
DC distribution box
Electrical information system cabinet
Output of second power equipment
DC distribution board
DC power supply equipment
DC distribution box
Electrical information system cabinet
Output of second power equipment
Parameter (Specification) of DC Surge Protector
| Model | DC Surge Protector 2P 40KA 600V |
| Pole | 2P |
| Uoc max (V DC) | 600V |
| Uc (V DC) | 600V |
| ln(8/20)us(kA) | 20 |
| lmax(8/20)us(kA) | 40 |
| Up (kV) | 2.5 |
| Technology | Short-Circuit Interuption(SCI) Overcurrent Protection | |
| Response Time(TA) | ＜25ns | |
| Wiring capacity | Hard wire:4–25 | |
| Flexible wire:4–16 | ||
| Striping length | 10 | |
| Terminal screw | M5 | |
| Torque(Nm) | Main circuit:3.5 | |
| Remote singal control:0.25 | ||
| Protection class | All profile:IP40 | |
| Connection port:IP20 | ||
| Installation environment | No obvious shock and cibration | |
| Working Temperature | ﹣40℃to80℃ | |
| Standards Informations | IEC 61643-31 Type 2, IEC 61643-1 Class II | |
