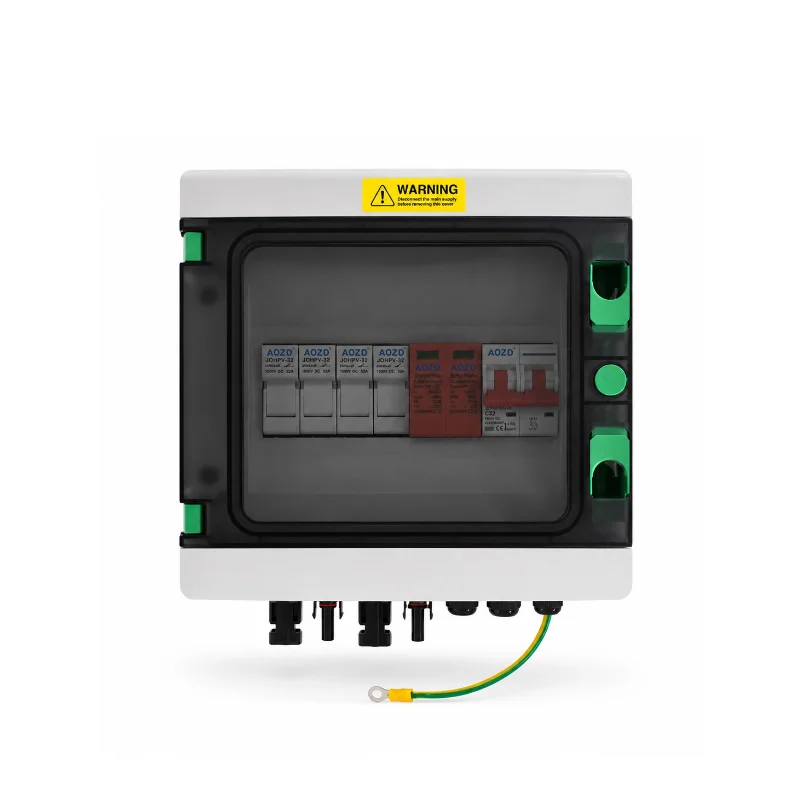

2 Strings In 1 Output DC PV Combiner Box
Professional solar DC combiner box designed for dual-string photovoltaic systems. Each input string is equipped with independent DC fuse for single-string protection, while the main output adopts DC MCB for overall circuit protection. Built-in lightning SPD effectively prevents surge damage. Adopts high-strength flame-retardant PC+ABS enclosure, IP65 dustproof and waterproof, fully adaptable to outdoor harsh environments. Compact structure, easy installation and maintenance, widely used in rooftop solar and small-scale PV power stations.
Item | Specification |
|---|---|
Product Name | 2 In 1 Out PV DC Combiner Box |
Input / Output | 2 Strings Input, 1 String Output |
Max System Voltage | DC 1000V |
Single String Rated Current | 15A / 20A / 32A (Optional) |
Max Output Current | 63A |
Input Protection | DC Fuse (per string) |
Main Output Protection | 2P DC MCB |
Surge Protection Device | Type II DC SPD, Imax 40kA |
Enclosure Material | PC+ABS Flame Retardant, UV-proof |
Protection Level | IP65, IK09 |
Mounting Type | Wall-mounted, Outdoor Installation |
Working Temperature | -25℃ ~ +60℃ |
Executive Standard | IEC 60947, IEC 61643, CE Certified |
Application | Rooftop Solar, Small & Medium PV Power Station |
