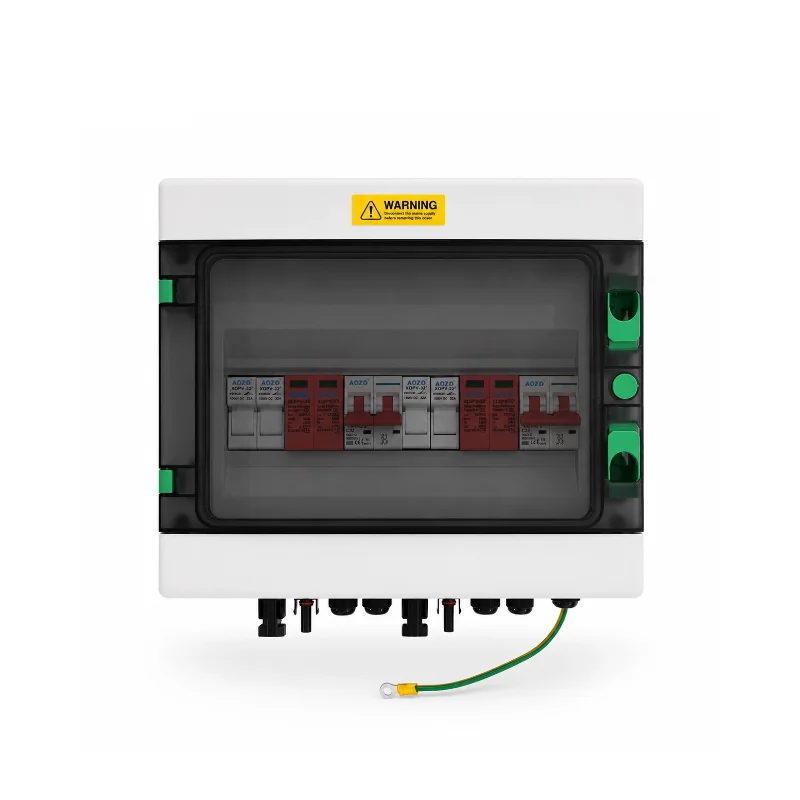

2 In 2 Out PV DC Combiner Box
This 2-string 2-output PV combiner box is designed for dual independent solar circuit systems. It is equipped with DC fuses for each input string and DC MCB for each output circuit, providing reliable overload and short-circuit protection. Built-in Type II SPD effectively protects the system against lightning and surge damage. Featuring IP65 waterproof, UV-proof and flame-retardant enclosure, it is suitable for outdoor rooftop solar and small and medium photovoltaic power stations with dual-loop independent power distribution requirements.
Item | Specification |
|---|---|
Product Name | 2 In 2 Out PV DC Combiner Box |
Input / Output | 2 Strings Input, 2 Strings Output |
Max System Voltage | DC 1000V |
Single String Rated Current | 15A / 20A / 32A (Optional) |
Max Single Output Current | 32A |
Input Protection | DC Fuse (per string) |
Output Protection | 2P DC MCB (each circuit) |
Surge Protection Device | Type II DC SPD, Imax 40kA |
Enclosure Material | PC+ABS Flame Retardant, UV-proof |
Protection Level | IP65, IK09 |
Mounting Type | Wall-mounted, Outdoor Installation |
Working Temperature | -25℃ ~ +60℃ |
Executive Standard | IEC 60947, IEC 61643, CE Certified |
Application | Rooftop Solar, Dual-loop PV System, Small & Medium PV Power Station |
