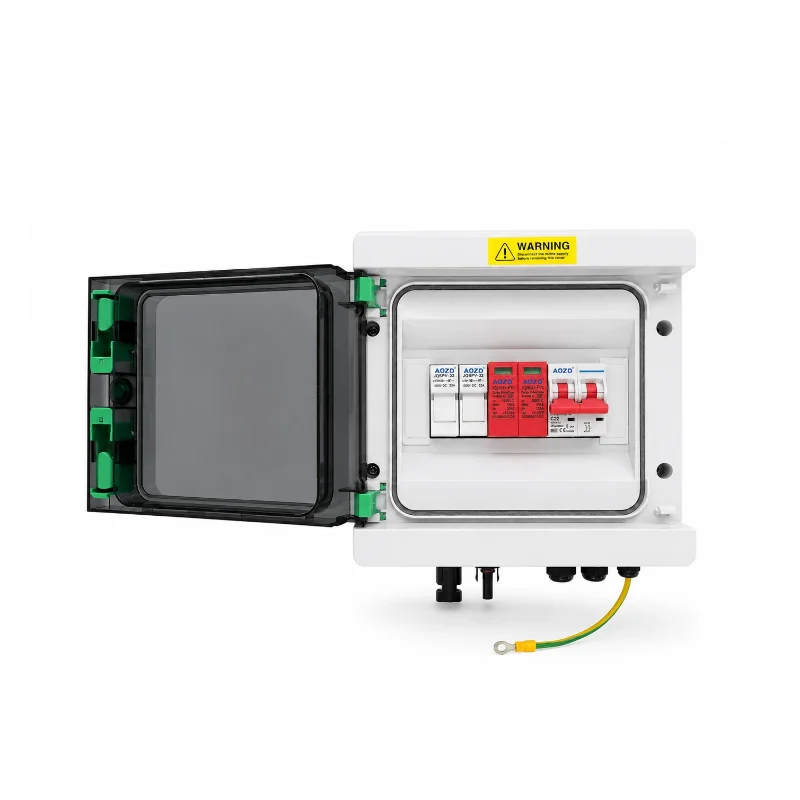

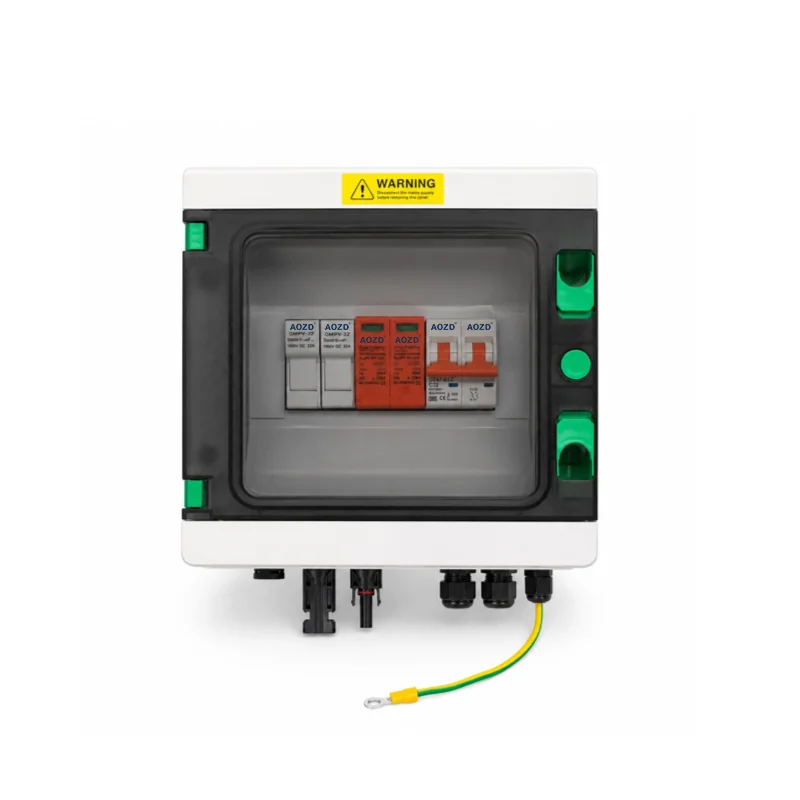

1 In 1 Out Solar PV Combiner Box
Single‑string DC combiner box with one input and one output. Integrates DC circuit‑breaker and Type‑II SPD for comprehensive safety protection against overload, short‑circuit and lightning surge. Adopts high‑strength PC+ABS flame‑retardant enclosure, IP65 waterproof, UV‑proof, suitable for outdoor wall‑mounted use. Widely applied in residential solar power, small off‑grid photovoltaic systems. Simple wiring, convenient maintenance, CE certified.
| Product Name | PV DC Combiner Box, 1‑In‑1‑Out |
| Model | PV‑1/1‑1000 |
| Number of Input Strings | 1 string |
| Number of Output Strings | 1 string |
| Max. System DC Voltage | DC 1000 V |
| Rated Output Current | 32A（可更换：63A 可选） |
| Built‑in DC Circuit Breaker | DC MCB, 2P, 1000VDC |
| Surge Protection Device (SPD) | Type‑II, Uc=1000V DC, Imax 40kA |
| Enclosure Material | PC+ABS, Flame‑retardant, UV‑resistant |
| Protection Degree | IP65, Outdoor waterproof & dust‑proof |
| Installation | Wall‑mounted |
| Operating Ambient Temperature | -25℃ ~ +60℃ |
| Relative Humidity | ≤95%，non‑condensing |
| Compliance Standard | IEC 60947‑3, IEC 61643‑31, CE |
| Application | Residential rooftop solar, single‑string photovoltaic system |
| Specification | Value |
| Type | 1‑in‑1‑out PV Combiner Box |
| Voltage | 1000V DC |
| Rated Current | 32A |
| Protection | DC MCB + SPD Surge Protection |
| Enclosure | IP65 Waterproof, PC+ABS |
| Mounting | Wall‑mount, Outdoor use |
