Description
Product Description
YL2-C50-12.5M 2P Surge Arrester Parameter (Specification):
| YL2-C50-12.5M 2P | |
| SPD classification according to EN61643-11 | Type 1+Type 2 |
| SPD classification according to IEC61643-11 | ClassI+ Class ⅡI |
| Nominal operating voltage Un | 230/400V(50/60Hz) |
| Max. continuous operating a.c Uc | 320V(50/60Hz) |
| Temporary overvoltage TOV | 385V/5s-withstand |
| Lightning impulse current(10/350μs) limp | 12.5kA |
| Nominal discharge current (8/20μs) In | 20kA |
| Maximum discharge current (8/20μs) Imax | 50kA |
| Voltage protection leve Up | ≤1.5kV |
| Short circuit current rating a.c. Isccr | 25kArms |
| Max. backup fuse | 160A gG |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area(Max.) | 35mm² |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |

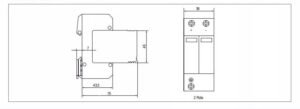

Dimension:
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A: Samples cost 2-3 days. Bulk order cost 12-15 days.
Q: If i want to release order, what’s the payment method you accept ?
A: We accept T/T, Western union, Trade Assurance.
A: Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A: Samples cost 2-3 days. Bulk order cost 12-15 days.
Q: If i want to release order, what’s the payment method you accept ?
A: We accept T/T, Western union, Trade Assurance.
