Description
Product Description
SOLAR CONNECTOR Feature:
Simple on-site processing.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity. approved.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity. approved.
SOLAR CONNECTOR Specification:
| Item | SOLAR CONNECTOR |
| Model Number | YLPVT5 |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50Hz, 1min) |
| Overvoltage Type/Pollution Degree | CAT III /2 |
| Contact Resistance Of Plug Connector | <1mΩ |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PPO |
| Degree Of Protection | IP2X/IP67 |
| Flame Class | UL94-VO |
| Safety Class | II |
| Insertion Force/Withdrawal Force | ≤ 50N/ ≥ 50N |
| Connecting System | Crimp connection |
| Temperature Range | -40℃ ~ +125℃ |
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A: Samples cost 2-3 days. Bulk order cost 12-15 days.
Q: If i want to release order, what’s the payment method you accept ?
A: We accept T/T, Western union, Trade Assurance.
A: Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A: Samples cost 2-3 days. Bulk order cost 12-15 days.
Q: If i want to release order, what’s the payment method you accept ?
A: We accept T/T, Western union, Trade Assurance.

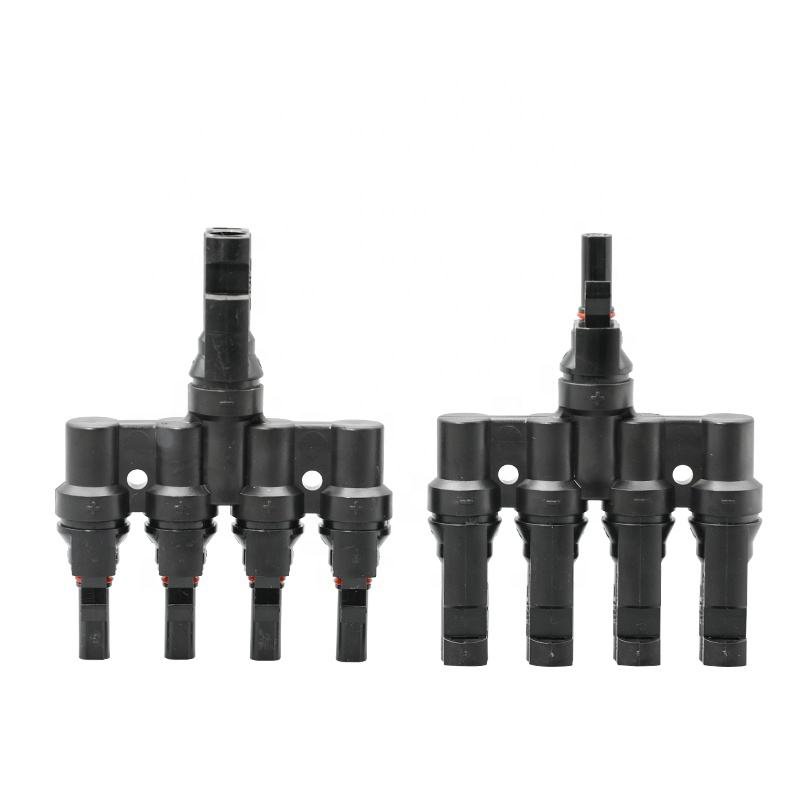

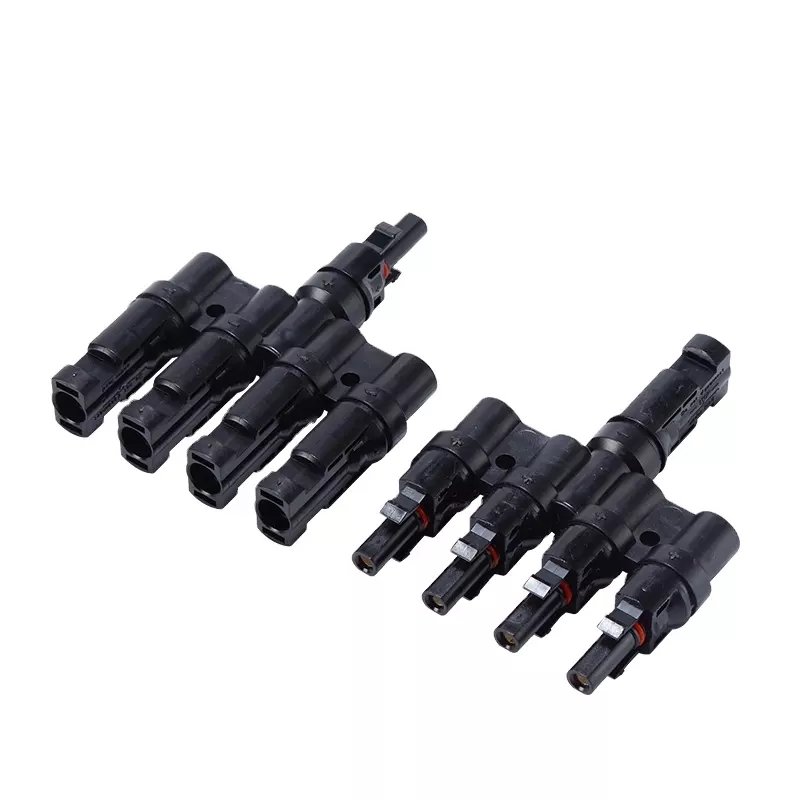

Hot Tags: T5 Solar Connector 1 To 4 T Type Solar Panel Cable Branch Connector, Wholesale, Buy, China, Discount, Quality, Low Price, Buy Discount, Manufacturers, Suppliers, Factory, In Stock, Free Sample, Made in China, CE, 2 Years Warranty, hot sale, hot selling, Factory Direct Sale, Factory Directly Supply
