Description
Power distribution blocks Features
China Factory Directly Supply Power Distribution Block In Stock.

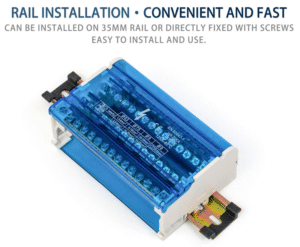

Power distribution blocks offer a safe,convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits.UK413 offers DIN-Rail mount installation and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors.
·IP20 rated with hinged and removable cover.
·High conductivity with excellent electrical contacts.
·Compact design.
·CE marked and RoHs compliant.
Power distribution blocks offer a safe,convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits.UK413 offers DIN-Rail mount installation and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors.
·IP20 rated with hinged and removable cover.
·High conductivity with excellent electrical contacts.
·Compact design.
·CE marked and RoHs compliant.

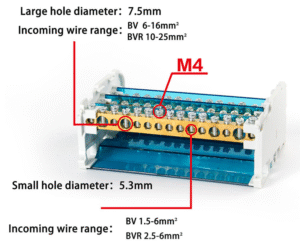

Technical Parameters of Power Distribution Block
| Model No. | UK413 |
| Color | hyaline and Gray |
| Length/Height/Wide (mm) | 180/138/73MM |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 500V/160A |
| Quantity of Hole | 4X13 |
| Dimension for Brass Conductor | 8*17MM |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | GHX, LOGO can be customized |
| Certification | CE/RoHS/CQC/ISO 9001 |
FAQ of Power Distribution Block
Q:When I can receive quotation and detail information after send the inquiry?
A:Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A:We have our own design box with PC/ABS material.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A:Samples cost 2-3 days. Bulk order cost 12-15 days.
Q:If i want to release order, what’s the payment method you accept ?
A:We accept T/T, Western union, Trade Assurance.
A:Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A:We have our own design box with PC/ABS material.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A:Samples cost 2-3 days. Bulk order cost 12-15 days.
Q:If i want to release order, what’s the payment method you accept ?
A:We accept T/T, Western union, Trade Assurance.
