Product Description

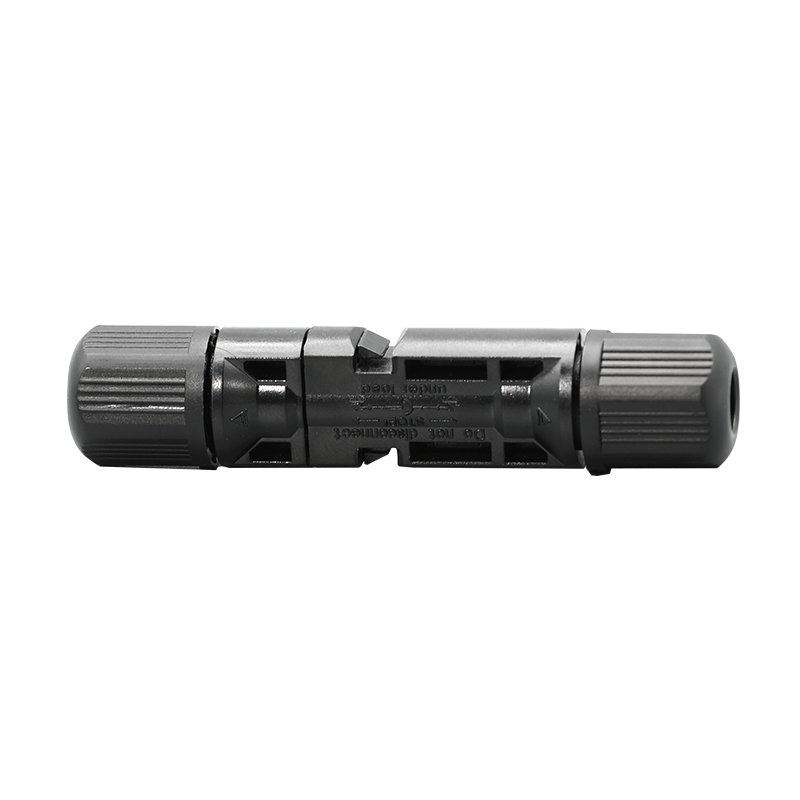

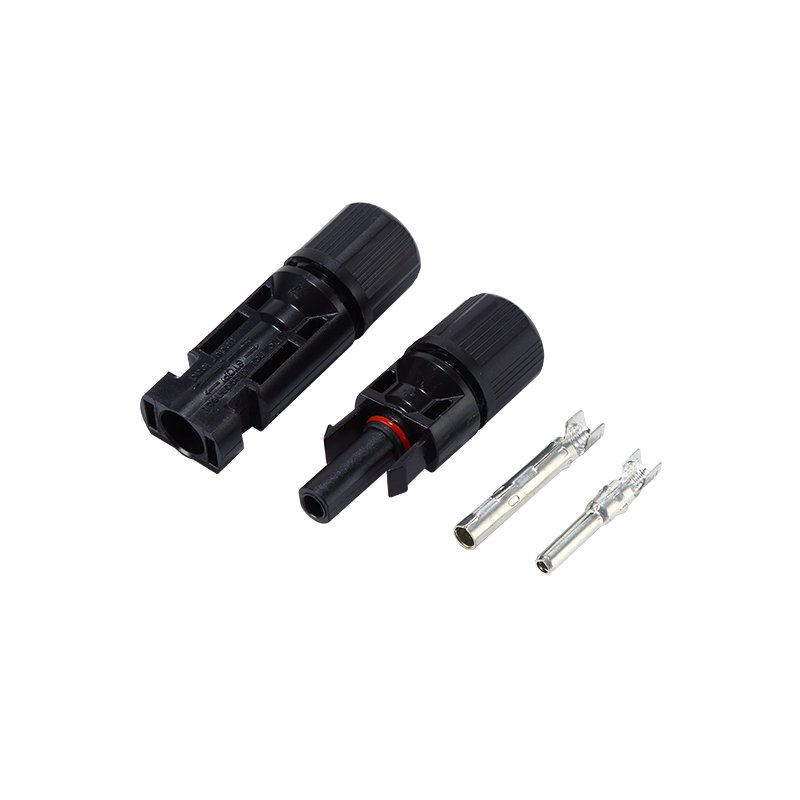

Features of MC4 Solar Connector
Buy discount MC4 Solar Connector Free Sample made in China.

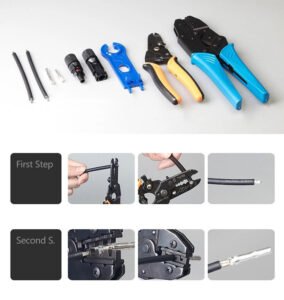

Simple on-site processing.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity.
Simple on-site processing.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles.
High current carrying capacity.
Technical Parameter of MC4 Solar Connector
| Item | MC4 Solar Connector |
| Model Number | YLPVCC |
| Rated Voltage | 1000V DC/1500V DC |
| Test Voltage | 6000V(50Hz, 1min) |
| Overvoltage Type/Pollution Degree | CAT III /2 |
| Contact Resistance Of Plug Connector | <1mΩ |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PPO |
| Degree Of Protection | IP2X/IP67 |
| Flame Class | UL94-VO |
| Safety Class | II |
| Suitable Cable | OD 4.5-8.5(2.5-6.0mm2) |
| Insertion Force/Withdrawal Force | ≤ 50N/ ≥ 50N |
| Connecting System | Crimp connection |
| Temperature Range | -40℃ ~ +125℃ |

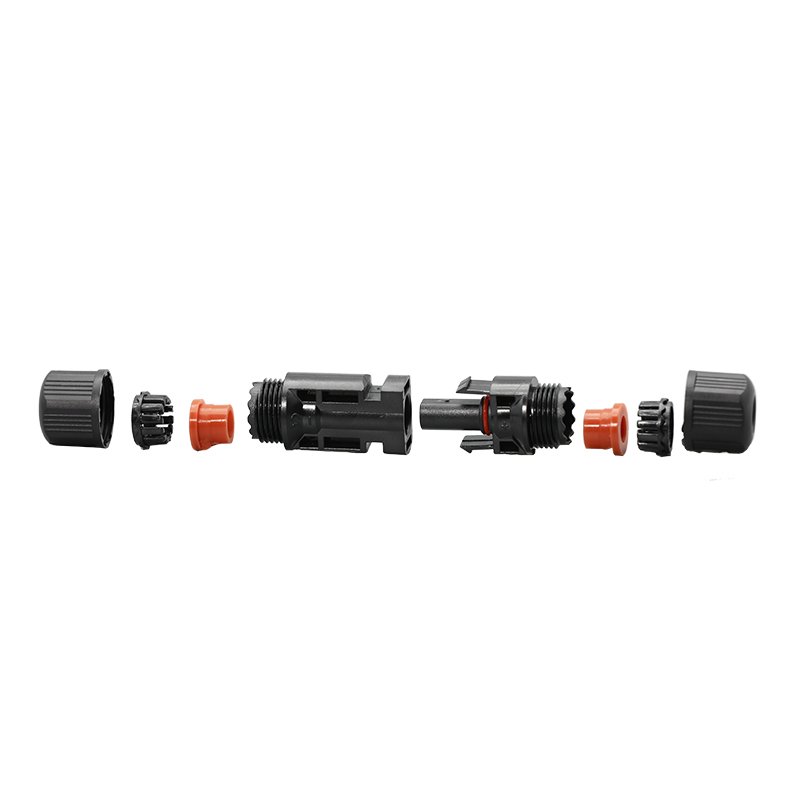

Drawing of MC4 Solar Connector
Q:When I can receive quotation and detail information after send the enquiry?
A:Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A:We have our own design box with PC/ABS material.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A:Samples cost 2-3 days. Bulk order cost 12-15 days.
Q:If i want to release order, what’s the payment method you accept ?
A:We accept T/T, Western union, Trade Assurance.
A:Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A:We have our own design box with PC/ABS material.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A:Samples cost 2-3 days. Bulk order cost 12-15 days.
Q:If i want to release order, what’s the payment method you accept ?
A:We accept T/T, Western union, Trade Assurance.
