Description
Product Description
Feature:
Simple on-site processing.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles .
High current carrying capacity.
Acomodates PV cable with different insulation diameters.
Mating safety provided bykeyed housings.
Multiple plugging and unplugging cycles .
High current carrying capacity.
Technical Parameter:

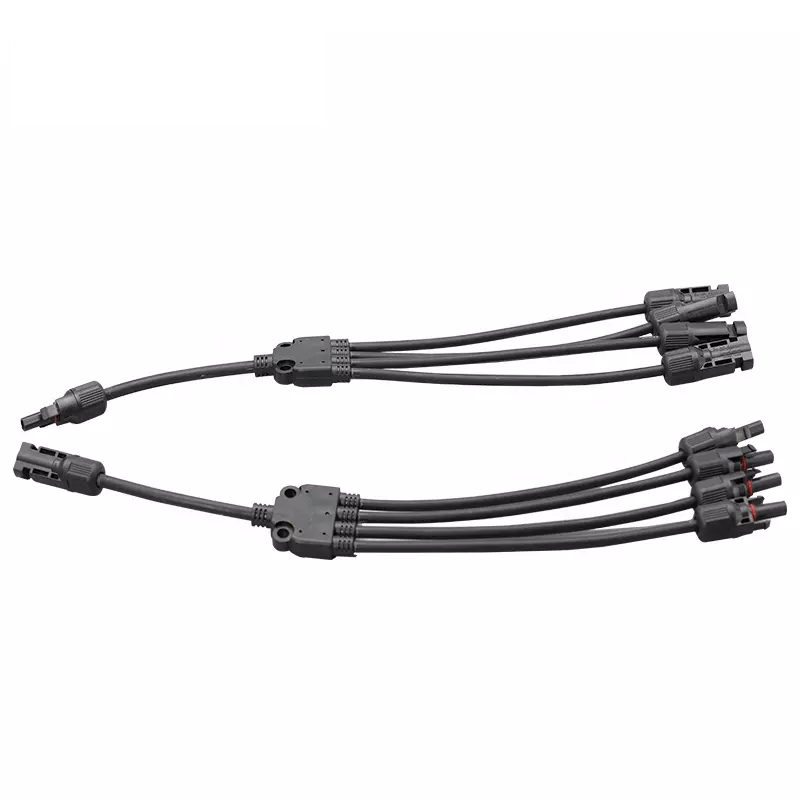

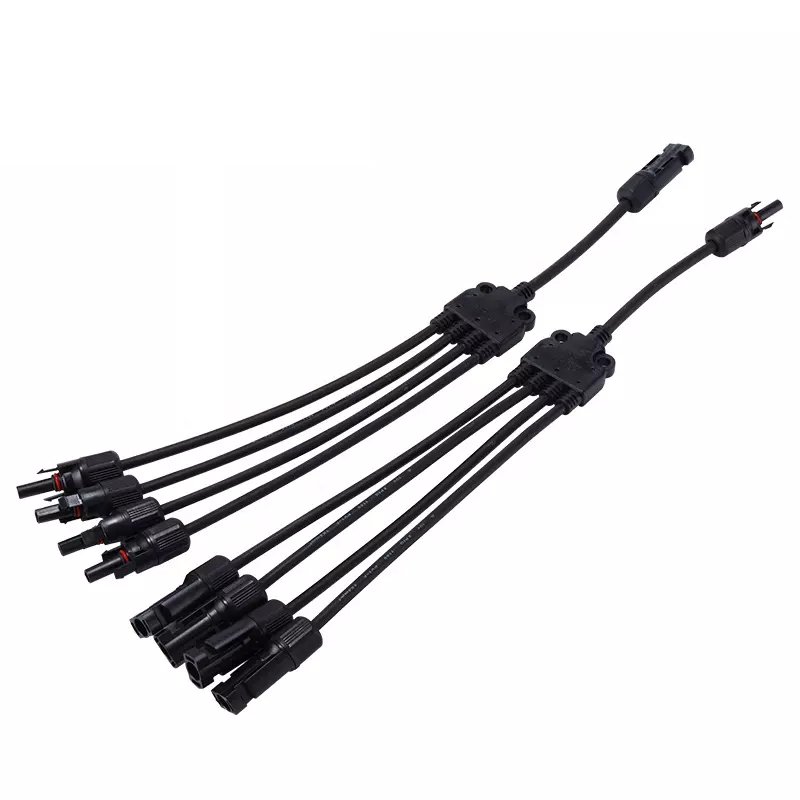

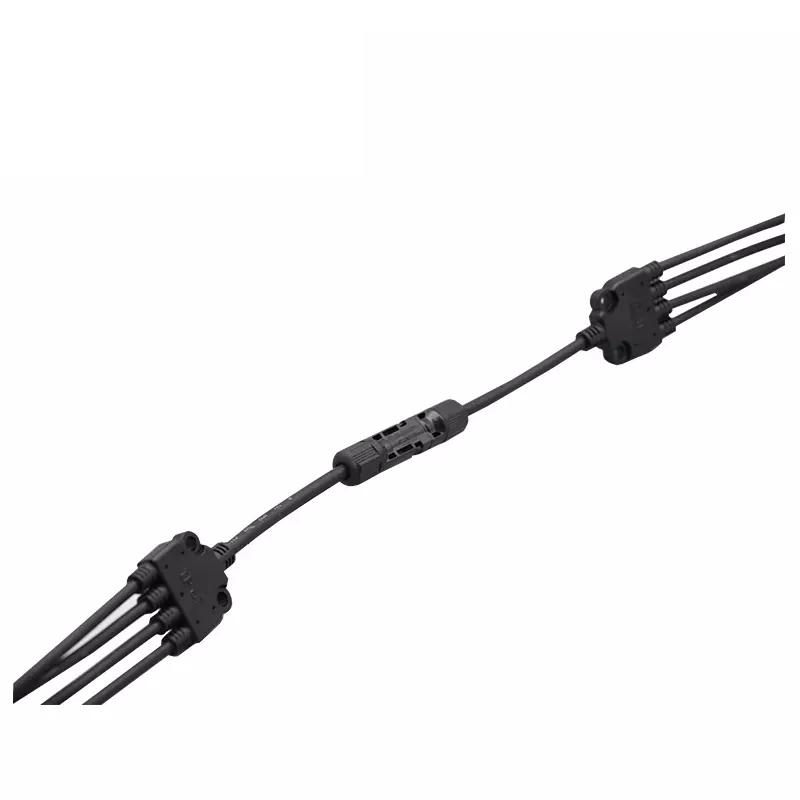

| Item | Y Type 4ways Solar Connector |
| Model Number | YLPVY5 |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50Hz, 1min) |
| Overvoltage Type/Pollution Degree | CAT III /2 |
| Contact Resistance Of Plug Connector | ≤0.5mΩ |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PPO |
| Degree Of Protection | IP2X/IP67 |
| Flame Class | UL94-VO |
| Safety Class | II |
| Suitable Cable | 2.5-6.0mm² |
| Insertion Force/Withdrawal Force | ≤ 50N/ ≥ 50N |
| Connecting System | Crimp connection |
| Temperature Range | -40℃ ~ +125℃ |
| Cable Length | 19.5CM |
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A: Samples cost 2-3 days. Bulk order cost 12-15 days.
Q: If i want to release order, what’s the payment method you accept ?
A: We accept T/T, Western union, Trade Assurance.
A: Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A: Samples cost 2-3 days. Bulk order cost 12-15 days.
Q: If i want to release order, what’s the payment method you accept ?
A: We accept T/T, Western union, Trade Assurance.
