Description
Product Description
Terminal Block with different Spec
Buy Hot Sale Earth Bar made in China.
Material: Brass,ABS plastic
Color: Blue, Green
Brass spec.: 4/6/8/10/12/15/18/24ways etc.
Material: Brass,ABS plastic
Color: Blue, Green
Brass spec.: 4/6/8/10/12/15/18/24ways etc.
Customized accept of Earth Terminal
• PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
• ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
• Brass, screw: iron plated zinc
• Voltage: 250V-450V
• Color: according sample picture or customized
• High precision
• Excellent inoxidability
• Great ingredient accuracy and high intensity
• High corrosion resistance
• Small Order Accept
• Tolerance: ± 0.3mm
• Free sample
• ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
• Brass, screw: iron plated zinc
• Voltage: 250V-450V
• Color: according sample picture or customized
• High precision
• Excellent inoxidability
• Great ingredient accuracy and high intensity
• High corrosion resistance
• Small Order Accept
• Tolerance: ± 0.3mm
• Free sample

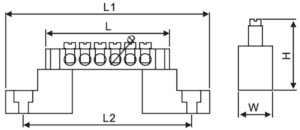

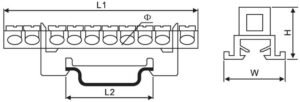

Grounding Terminal Block Drawing
| Holes | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Material |
| W*H | MM | ||||||||
| 6 | 6*9 | 53.5 | 88.5 | 48.5 | 30 | 16 | 5 | M4*8 | ABS |
| 7 | 6*9 | 60 | 95 | 77 | 30 | 16 | 5 | M4*8 | ABS |
| 8 | 6*9 | 66.5 | 101.5 | 83.5 | 30 | 16 | 5 | M4*8 | ABS |
| 10 | 6*9 | 79.5 | 114.5 | 96.5 | 30 | 16 | 5 | M4*8 | ABS |
| 12 | 6*9 | 92.5 | 127.5 | 109.5 | 30 | 16 | 5 | M4*8 | ABS |
| 6 | 8*12 | 66.5 | 99.5 | 81.5 | 34 | 16 | 6.5 | M5*10 | ABS |
| 7 | 8*12 | 74.5 | 107.5 | 89.5 | 34 | 16 | 6.5 | M5*10 | ABS |
| 8 | 8*12 | 82.5 | 115.5 | 97.5 | 34 | 16 | 6.5 | M5*10 | ABS |
| 10 | 8*12 | 98.5 | 131.5 | 113.5 | 34 | 16 | 6.5 | M5*10 | ABS |
| 12 | 8*12 | 114.5 | 147.5 | 129.5 | 34 | 16 | 6.5 | M5*10 | ABS |
FAQ of Terminal Block Connector Neutral Grounding
FAQ of Earth Bar
Q1:Which Payment way is workable?
A:Irrevocable T/T, Western union, Trade Assurance
B:30%T/T deposit in advance, 70% balance before shipment after presentation of ready cargo
Q2:What is the normal lead time for product orders?
A:20-30 days after payment
Q3:What is your standard packing?
A:All the goods will be packed by carton box,inner box.
Q4:OEM?
A:Yes, we have over 10 years OEM experience earth bar:laser printing and silkscreen optional(products Other products, logo printed on stickers and master carton
