Description

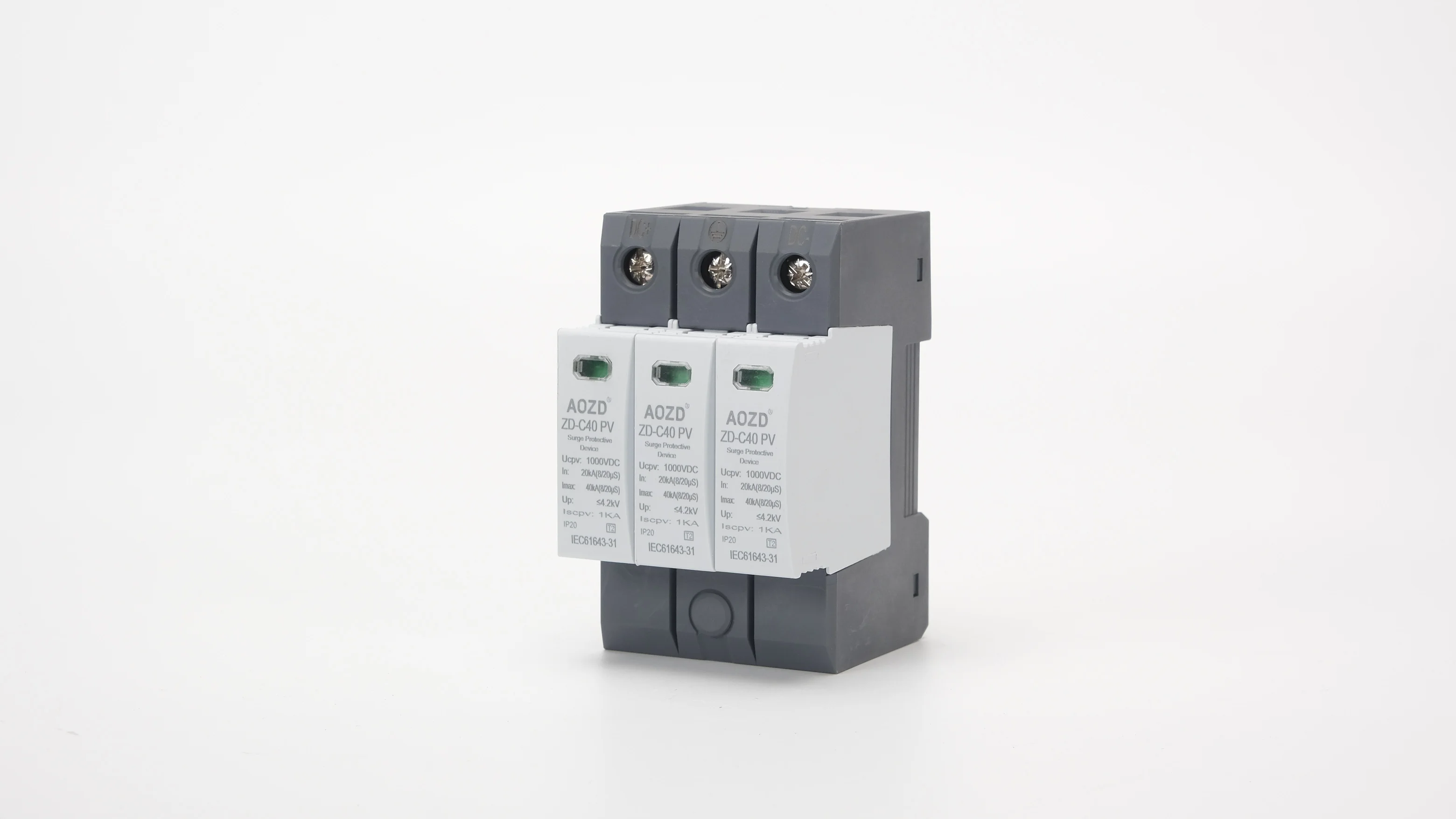

High quality DC 3 phase Surge Arrester made in China
3 phase Surge Arrester Application
DC 3 phase Surge Arrester manufacturer , protect against lightning surge voltages in solar system (photovoltaic power supply system).

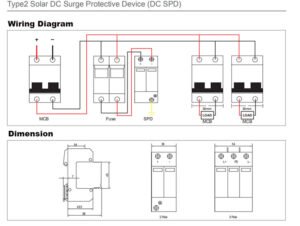

These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
3 phase Surge Arrester Features

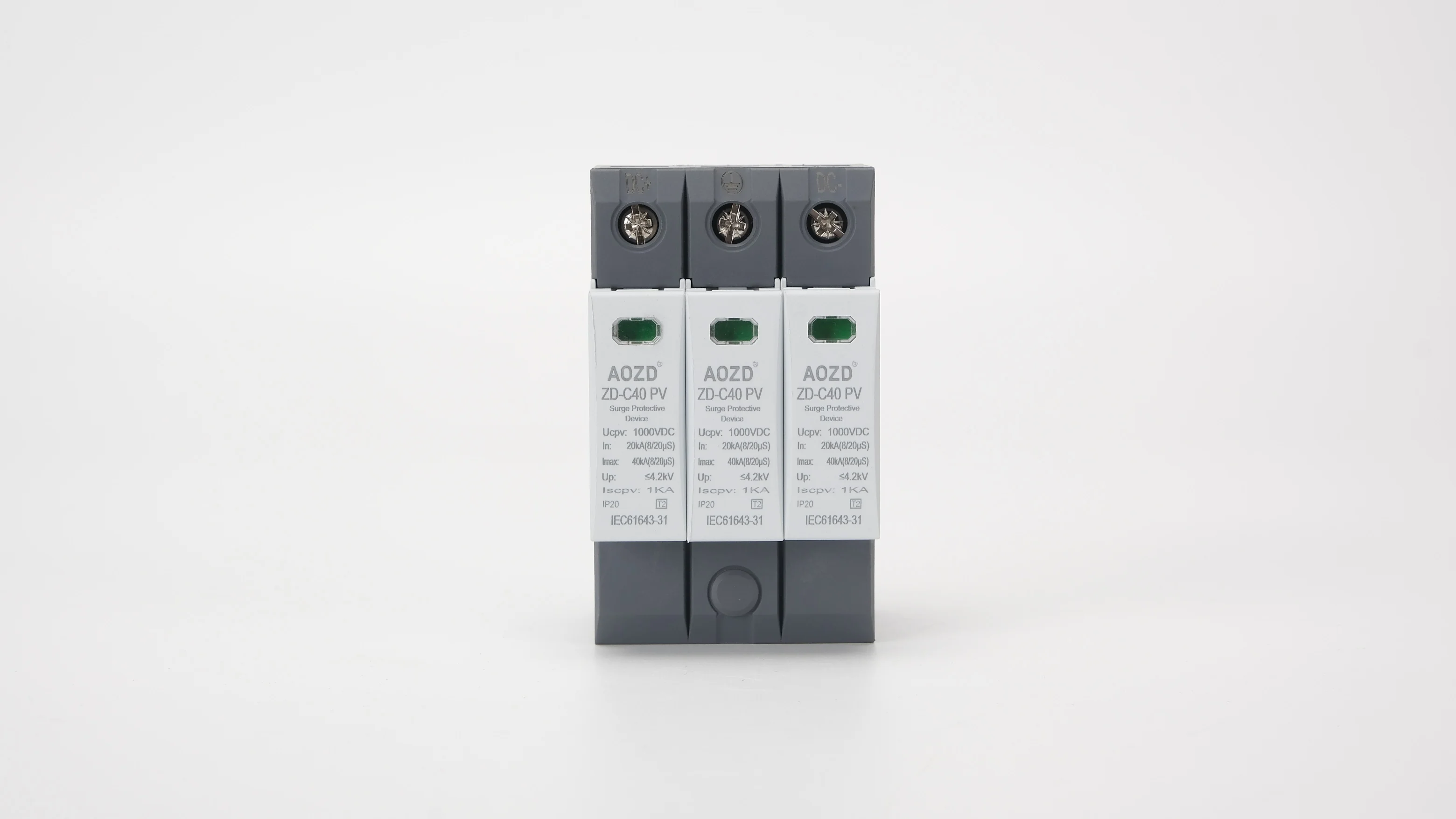

1.Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation

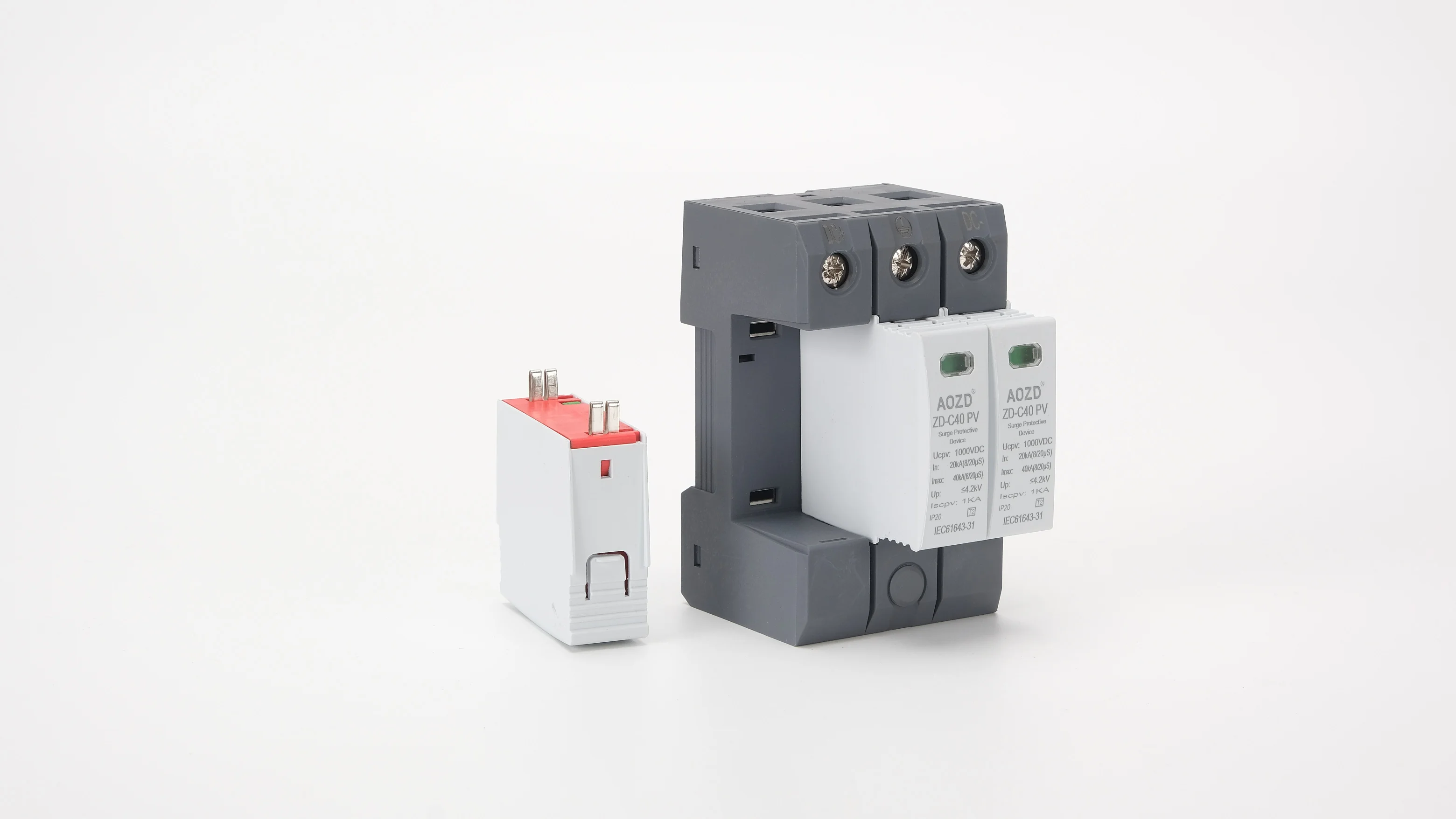

4. Replaceable module
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module
DC 3 phase Surge Arrester Parameter (Specification)
| Model | DC 3P 40KA 1000V Surge Arrester |
| Pole | 3P |
| Uoc max (V DC) | 1000V |
| Uc (V DC) | 1000V |
| ln(8/20)us(kA) | 20 |
| lmax(8/20)us(kA) | 40 |
| Up (kV) | 3.2 |
| Technology | Short-Circuit Interuption(SCI) Overcurrent Protection | |
| Response Time(TA) | ＜25ns | |
| Wiring capacity | Hard wire:4–25 | |
| Flexible wire:4–16 | ||
| Striping length | 10 | |
| Terminal screw | M5 | |
| Torque(Nm) | Main circuit:3.5 | |
| Remote singal control:0.25 | ||
| Protection class | All profile:IP40 | |
| Connection port:IP20 | ||
| Installation environment | No obvious shock and cibration | |
| Working Temperature | ﹣40℃to80℃ | |
| Standards Informations | IEC 61643-31 Type 2, IEC 61643-1 Class II | |
| Mounting | 35MM Din rail | |
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A:Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A:We have our own design box with PC/ABS material.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A:Samples cost 2-3 days. Bulk order cost 12-15 days.
Q:If i want to release order, what’s the payment method you accept ?
A:We accept T/T, Western union, Trade Assurance.
A:Reply will be sent in 24hours.
Q:What’s the difference between you and other suppliers?
A:We have our own design box with PC/ABS material.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How’s the delivery?Because I really need them is urgently?
A:Samples cost 2-3 days. Bulk order cost 12-15 days.
Q:If i want to release order, what’s the payment method you accept ?
A:We accept T/T, Western union, Trade Assurance.
