Description
GENERAL INFORMATION

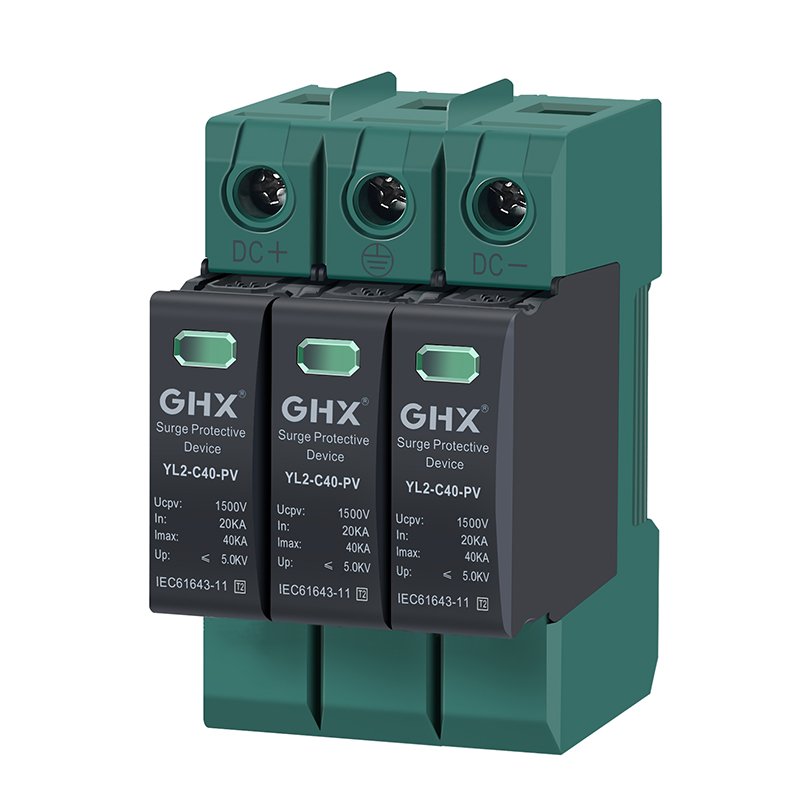

●Varistor photovoltaic surge protective device (PV DC SPD)
●Visual indication and optional remote contact signaling(S) for use in the DC side of PV systems.
●The Prewired complete unit consisting of a base part and replaceable plug-in protection modules.
●In case of insulation faults in the generator circuit, a raliable and tested fault-resistant Y MOV circuit prevents damage to the surge protective devices.
●DIN rail installation.
DIMENSION DRAWING
SPECIFICATIONS
| Model | YL2-C40-PV 3P |
| SPD according to EN 61643-11/IEC 61643-11 | Type 2/ Class Ⅱ |
| Max. continuous operating voltage (d.c.) (Uc) | 1500Vdc |
| Nominal discharge current (8/20µs) (In) | 20kA |
| Max. discharge current (8/20µs) (Imax) | 40kA |
| Voltage protection level (Up) | ≤5.0kV |
| Response time (ta) | ≤25ns |
| Max. Back-up fuse | * Not required |
| Short-circuit current rating (Isccr) | 1000A |
| Operating temperature range (Tu) | -40℃…+80℃ |
| Operating state/fault indication | Green (good)/ Red (repalce) |
| For mounting on | 35mm DIN rails acc. to EN 60715 |
| Cross-sectional area(Min.) | 4mm2 |
| Cross-sectional area(Max.) | 35mm2 |
| Stripping Length/ Tightening torque | 10mm/ 3Nm |
| Enclosure material | Thermoplastic, UL 94 V-0 |
| Place of installation | Indoor installation |
| Degree of protection | IP 20 |
| Demension (L*H*W) | 90mm*54mm*68mm |
