Description
GENERAL INFORMATION
●Varistor photovoltaic surge protective device (PV DC SPD)
●Visual indication and optional remote contact signaling(S) for use in the DC side of PV systems.
●The Prewired complete unit consisting of a base part and replaceable plug-in protection modules.
●In case of insulation faults in the generator circuit, a raliable and tested fault-resistant Y MOV circuit prevents damage to the surge protective devices.
●DIN rail installation.
DIMENSION DRAWING
SPECIFICATIONS

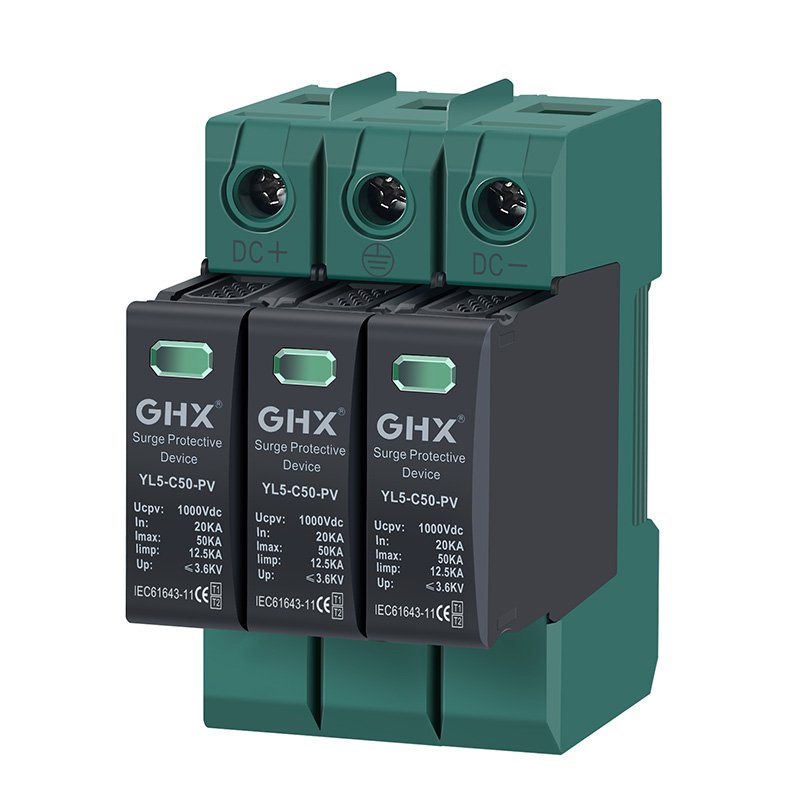

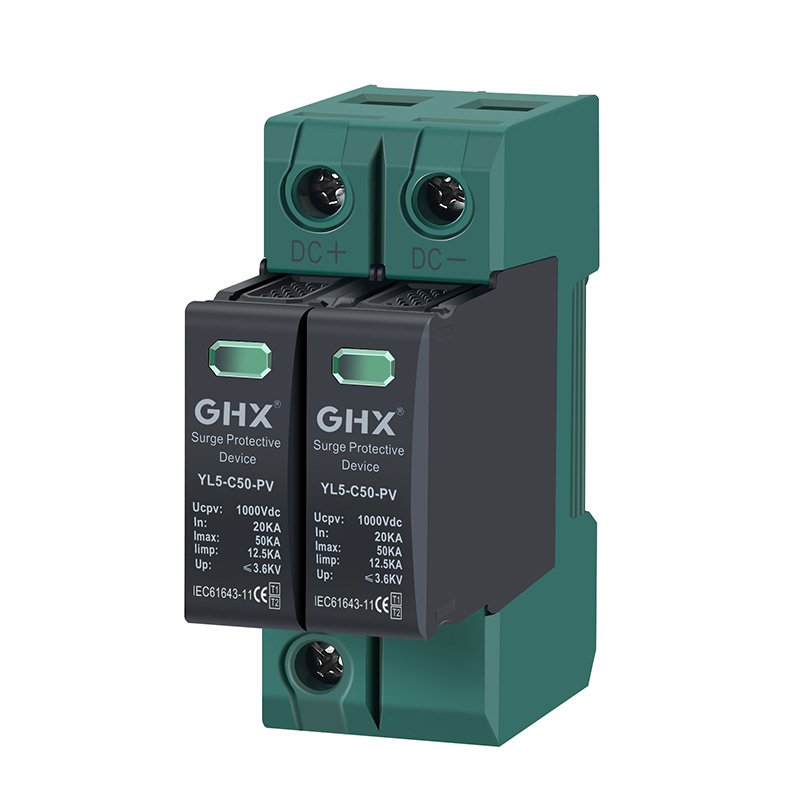

| Model | YL5-C50-PV 2P | YL5-C50-PV 3P |
| SPD according to EN 61643-11/IEC 61643-11 | Type 1+2/ Class Ⅰ+Ⅱ | Type 1+2/ Class Ⅰ+Ⅱ |
| Max. continuous operating voltage (d.c.) (Uc) | 1000Vdc | 1000Vdc |
| Lightning impulse current (10/350µs) (Iimp) | 12.5kA | 12.5kA |
| Nominal discharge current (8/20µs) (In) | 20kA | 20kA |
| Max. discharge current (8/20µs) (Imax) | 50kA | 50kA |
| Voltage protection level (Up) | ≤3.6kV | ≤3.6kV |
| Response time (ta) | ≤25ns | ≤25ns |
| Max. Back-up fuse | * Not required | * Not required |
| Short-circuit current rating (Isccr) | 1000A | 1000A |
| Operating temperature range (Tu) | -40℃…+80℃ | -40℃…+80℃ |
| Operating state/fault indication | Green (good)/ Red (repalce) | Green (good)/ Red (repalce) |
| For mounting on | 35mm DIN rails acc. to EN 60715 | 35mm DIN rails acc. to EN 60715 |
| Cross-sectional area(Min.) | 4mm2 | 4mm2 |
| Cross-sectional area(Max.) | 35mm2 | 35mm2 |
| Stripping Length/ Tightening torque | 10mm/ 3Nm | 10mm/ 3Nm |
| Enclosure material | Thermoplastic, UL 94 V-0 | Thermoplastic, UL 94 V-0 |
| Place of installation | Indoor installation | Indoor installation |
| Degree of protection | IP 20 | IP 20 |
| Demension (L*H*W) | 90mm*36mm*82mm | 90mm*54mm*82mm |
