ommon mode SPD between phase and PE or phase and PEN is installed whatever type of system earthing arrangement (see Fig. 1).
The neutral earthing resistor R1 used for the pylons has a lower resistance than the earthing resistor R2 used for the installation.
The lightning current will flow through circuit ABCD to earth via the easiest path. It will pass through varistors V1 and V2 in series, causing a differential voltage equal to twice the Up voltage of the SPD (Up1 + Up2) to appear at the terminals of A and C at the entrance to the installation in extreme cases.
To protect the loads between Ph and N effectively, the differential mode voltage (between A and C) must be reduced.
Another SPD architecture is therefore used (see Fig.2)
The lightning current flows through circuit ABH which has a lower impedance than circuit ABCD, as the impedance of the component used between B and H is null (gas filled spark gap). In this case, the differential voltage is equal to the residual voltage of the SPD (Up2).
In spite of the high lightning risk that many PV installations are exposed to, they can be protected by the application of DC SPDs and a properly engineered lightning protection system. Effective DC SPD implementation should include the following considerations: •Correct placement in the system •Termination requirements •Proper grounding and bonding of the equipment-ground system […]
Product Size：For 2.5mm,4mm,6mm cable Product Material：Tinned Copper, PPO MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box. They’re UV resistance and IP68 waterproof ,can be working outdoor for 25years. Excellent characteristics of MC4 Solar Connector: 1. Compatible MC4 2. Standard thickness 0.4 terminals 3. Simple on-site processing 4. Mating safety […]

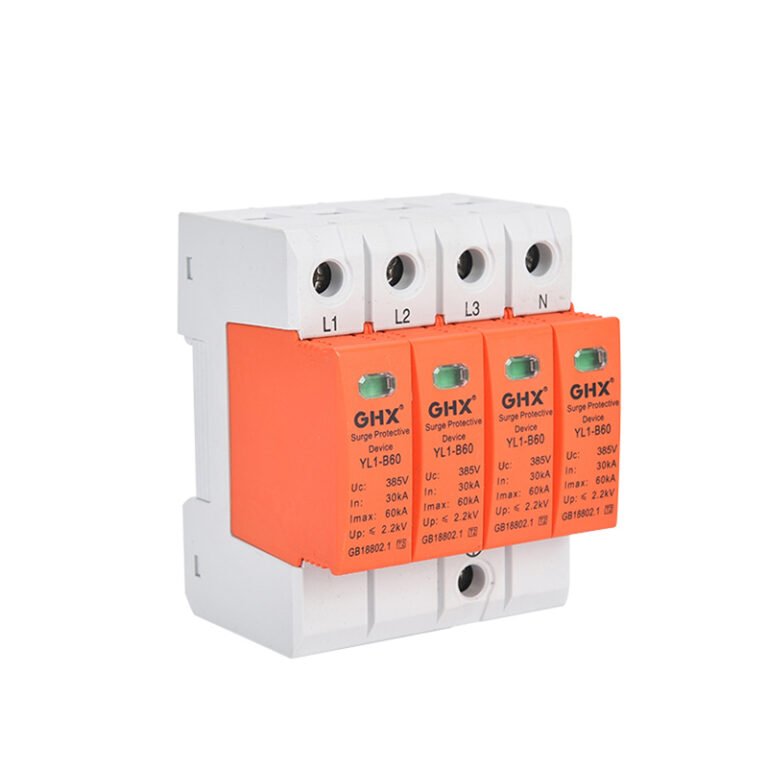

A surge protective device (SPD) is designed to protect electrical systems and equipment from surge events by limiting transient voltages and diverting surge currents. Surges can originate externally, most intensely by lightning, or internally by the switching of electrical loads. The sources of these internal surges, which account for 65% of all transients, can include […]
